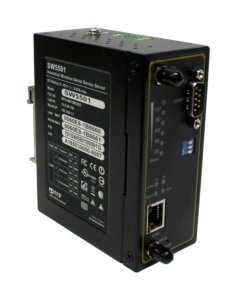

SW5501 Wireless Serial Device Server
SW5501 is an industrial serial device server that enables any device with 1 serial port (RS-232/422/485) to communicate wirelessly over an IEEE 802.11 a/b/g/n network. Packed in an IP50 rugged metal housing with DIN rail mountable case. It is 9 to 48 VDC powered and has 4.5 W power consumption.
The industrial SW5500 series is compact, rugged (IP50) and cost effective industrial-grade wireless device servers. This series is designed for wireless communication over the IEEE 802.11a/b/g/n network with any device that has a serial interface (RS-232/422/485).
With support for the latest n standard and operation on either the 2.4GHz or 5GHz band, the SW5500 series offer superior signal strength and the flexibility required to achieve excellent wireless performance.
The model SW5501 features 1 DB9 serial port (RS-232/422/485) interface. It comes with dual antenna design which offers better wireless cover safe and reduces wireless blind spots
By encapsulating serial data and transporting it over Wireless LAN or for security requirements by WEP or WPA2-PSK compatiable (supported TKIP/AES encryption). SW5001 offers full-duplex, bi-directional data transmission transparent between serial port and Wireless LAN.
In industrial and manufacturing automation fields, SW5500 series is used as a field device to connect the Ethernet through TCP/IPv4 protocol directly. It is also specially designed for conjunction with PLCs, HMIs, Barcode Scanners, Data Terminals, Electronic Kanbans, Shop Floor Control Systems, and Pick-to-Light Systems.
This unit is the replacement product of the end-of-life SW5001, which we've currently put the last two units on clearance for a quick sale. This unit has a 5 yr warranty
SW5500 Series Options:
- SW5501: 1 DB9 serial port (RS232/422/485)
- SW5501-TB: 1 TB serial port (RS232/422/485)
- SW5501-Sis: 1 TB serial port (RS232/422/485) & 2 KV Isolation
- SW5502: 2 DB9 serial port (RS232/422/485)
- SW5502-TB: 2 TB serial port (RS232/422/485)
- SW5502-Sis: 2 TB serial port (RS232/422/485) & 2 KV Isolation
We carry a selection of the full range of options listed above. Non-stocked configurations may be available but may be subject to minimum order quantities or different pricing. Contact Us for more information.
Power
- Input: 9 to 30 VDC
- Consumption: ≤4.5 W(Tx mode)
WLAN
- Tx power: 17 dBm max
- Transmission rate: 300 Mbps
- Rx sensitivity: -98 dBm max
- Antenna connector: Reverse SMA
- Topology: Infrastructure, Ad-Hoc
- Standard antenna: 3/5 dBi
- Encryption: TKIP, AES
- security: Security WEP, WPA-PSK, WPA2-PSK, 802.1x
Ethernet
- Transmission rate: 10/100/1000 Mbps Auto-detection
- Port(s): 1
- Connector: RJ-45
- Auto MDI/MDI-X: Yes
- Compliance:
- IEEE802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3ab 1000BASE-T
Serial
- Connector: 5.08 mm 5-pin Lockable Terminal Block
- Interface: RS-232/422/485
- Isolation: No
- Port(s): 1
- Baud rate: 110 bps ~ 921 kbps
- Parity: None, Odd, Even, Mark, Space
- Data bits: 5, 6, 7, 8
- Stop bit: 1, 2
- Flow control:
- None
- Software: Xon/Xoff
- Hardware: RTS/CTS
Link Mode
- TCP server: Up to 4 connections or Virtual Com mode
- TCP client: Up to 2 destinations
- UDP: Up to 4 destinations
Environment
- Operating temperature: 0°C to 65°C ( 32º to 140ºF )
- Storage: -40º to 85ºC ( -40º to 185ºF ), 5 to 95%RH
Approval
- EMC: FCC Class A, CE Class A
Mechanical
- Housing: IP50 rated
- Installation: DIN-rail
- Reset button: Yes
- Dimension: 44(W) × 110(H) × 90(H) mm
Connection Diagrams
Figure1.1: Wireless Connection
Figure1.2: TCP-Server-Mode
- Download Manual
- ATOP's Virtual Com Software
- Wireless performance data, of the older SW5001 model, showing how the wireless gateways work with their internal antenna, or an external, higher gain antenna (like WIR-005)
- Warehouse Automation application, where wireless serial gateways are used to keep stock robots in communication with the central warehouse control system
- Stadium Lighting application, where wireless and wired serial to Ethernet converters are used to enable communication between lighting and the central lighting controller.
