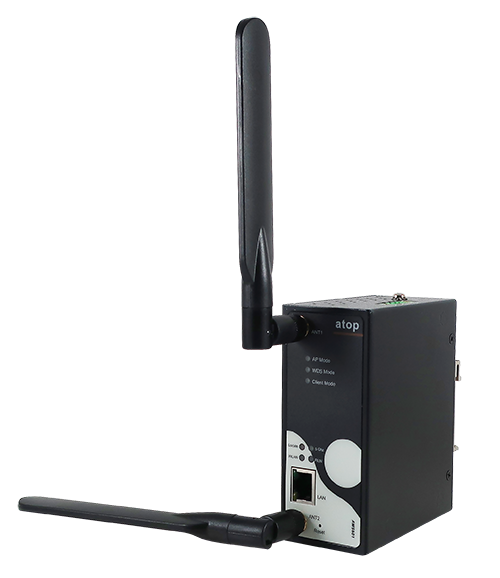

AW5601 Wireless Access Point
- Industrial Communication mode combines advanced features such as Flash Roaming, PROFINET Transparent, and VLAN Tagging
- Engineered for Extreme Condition(-30°C to 70C) with Advanced EMC Design
- Versatile Operating Modes for Tailored Connectivity (WDS Bridge and AP Client)
- Seamless Wi-Fi Connectivity with Sub-30ms Flash Roaming
- Standard Wi-Fi Roaming(802.11r) with Sub-100ms Roaming Time*
- PROFINET Transparent Mode for Addressing NAT & PROFINET
Deployment
Wide application
AW5601 is a rugged, industrial-grade wireless access point suited for harsh conditions. Utilizing the 5GHz frequency band, AW5601 causes minimal interference with existing wireless devices, allowing easy upscaling of systems. Besides basic AP/Client modes, an additional WDS Bridge mode allows distribution from a WDS Root to multiple WDS Hybrids and wireless devices. WDS Root and Hybrids have the same wireless MAC address, SSID, and wireless channel settings, forming a larger, more flexible wireless network than simple APs.
High efficiency
Developed specifically with industrial automation in mind, the AW5601 features Flash Roaming and PROFINET transparency, empowering AGV/AMR applications with less latency, simpler topologies, and higher efficiency, which can be further enhanced with PoE PD support.
Simply secure
Security is also vital in AW5601’s design. State-of-the-art encryption complements the ability to create a virtual network among wireless clients, enabling easy and intuitive communication control between clients while imposing restrictions on data and excluding malware. And finally, AW5601 embodies a robust wireless network manager to help your network deliver optimal performance.
APPLICATION CASES

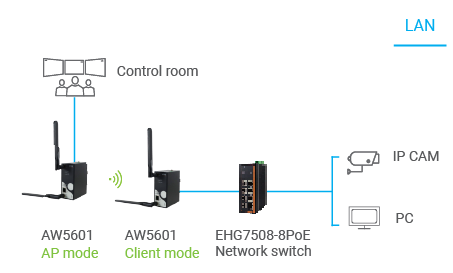

AP mode and Client mode

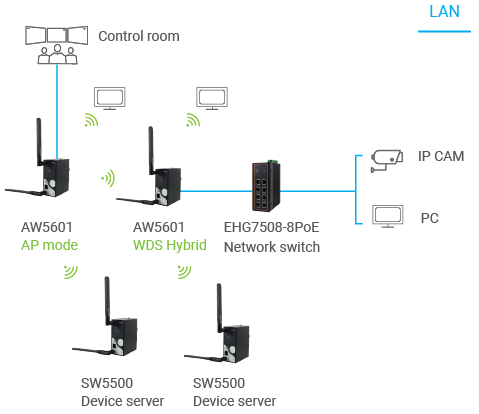

WDS mode
Industrial Communication Mode
The AW5601-IC model includes a built-in Industrial Communication Mode, which combines advanced features such as Flash Roaming, PROFINET Transparent, and VLAN Tagging. Under this mode, packet transmission over wireless also differs from regular transmission. See the below diagram for details.
Features on Industrial Communication Mode:
1. Flash Roaming
2. PROFINET Transparent and over-NAT Application
3. VLAN tag
4. PROFINET QoS
5. Other Industrial Protocols (by request)

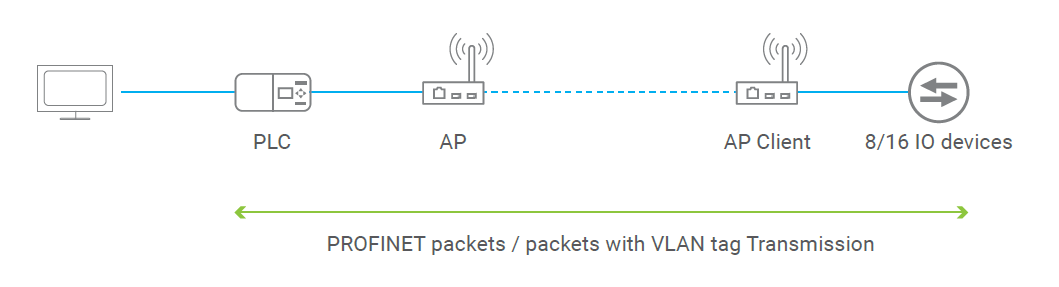

Industrial Communication Mode

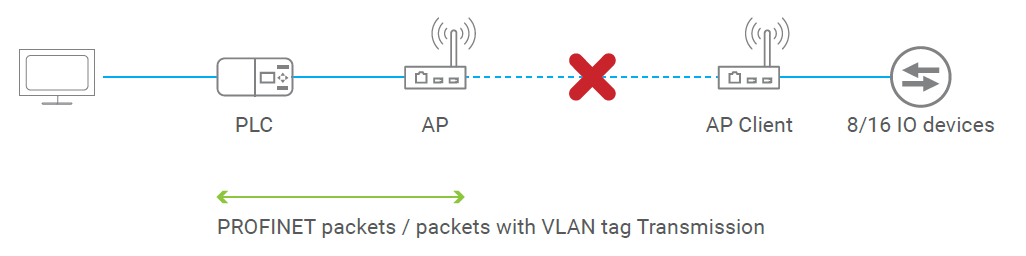

Regular (Non-IC) Mode

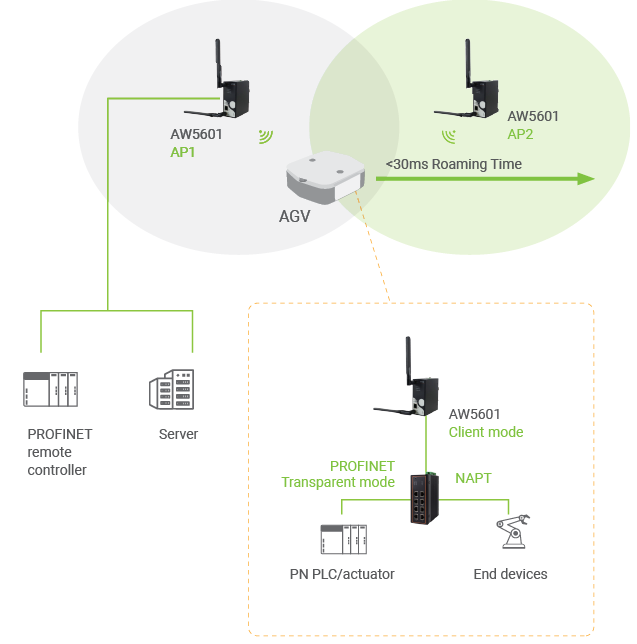

Application on AGV with Flash Roaming and PROFINET Transparency
AGVs and other mobile systems can move beyond the range of a single AP. Yet, for processes that operate in transit, the latency due to network handover can be crucial. AW5601 offers Flash Roaming that achieves handover with less than 30ms signal switching latency, causing minimal impact on operation.
An AGV is a small system incorporating several controlled devices and a CPU or PLC for management. Considering the number of total devices in a site, AGV networks are usually set as small LANs, with end-device traffic undergoing network address translation (NAT/NAPT) to conserve the number of globally valid IPs.
Many PLCs, however, work with PROFINET packets under a NAT/NAPT environment, which will be lost through address translation. Therefore, AW5601 supports a PROFINET Transparent mode to allow explicitly permitted PROFINET communications to pass through under a NAT/NAPT environment, achieving both efficiency and effectivity in AGV systems.
* The data is the result of tests conducted in a standard lab.
| Connectivity | |
|---|---|
| Wi-Fi Parameter | 802.11a (5.0GHz), 802.11g (2.4GHz) 802.11n (2.4GHz/5.0GHz), 802.11ac (5.0GHz) |
| Ethernet Port | 1x 10/100/1000Mbps (802.3at PoE PD; optional) |
| Software Characteristics | |
|---|---|
| Watchdog | Yes |
| Operation Modes | AP, Client, WDS, WDS Hybrid (Repeater), Industrial Communication |
| Wireless Security | WPA/WPA2/WPA3 PSK/Enterprise |
| Network Security | Client isolation, firewall/filtering |
| Alert Events | E-mail, SNMP Trap |
| Support Protocol | ICMP, TCP, UDP, DHCP Server/Client, DNS, SNMP, NTP, SMTP, HTTP, IPv4, SNMP v1/v2, NTP, SNTP, SMTP/Syslog, HTTP/HTTPS, IPv4, TFTP, ICMP, NAT/NAPT/Static NAT, ARP, STP/RSTP(forwarding) |
| Configuration | ATOP Management Utility, Web UI |
| Diagnostic Functions | System status |
| Others | Flash roaming, PROFINET transparent |
| Wireless Characteristic | |
|---|---|
| Tx / Rx | 2T2R MIMO |
| Standard Conformance | 802.11a/g/n/ac |
| Antenna (5GHz) | 2x RP-SMA(M) connectors, 5dBi |
| Data Rate | |
|---|---|
| 802.11a/g | 54Mbps |
| 802.11n | 300Mbps |
| 802.11ac | 867Mbps |
| Antenna | |
|---|---|
| Gain | 2.4GHz(3dBi), 5G(5dBi) |
| Connector | 2x RP-SMA(M) connectors |
| Output Power & Sensitivity | ||
|---|---|---|
| 802.11g | ||
| Data Rate | Tx +/- 2dB (1TX) | Rx Sensitivity +/- 2dB |
| 1~11Mbps | 20dBm | -90dBm |
| 6Mbps | 21dBm | -90dBm |
| 9Mbps | 21dBm | -89dBm |
| 12Mbps | 21dBm | -88dBm |
| 18Mbps | 21dBm | -87dBm |
| 24Mbps | 21dBm | -84dBm |
| 36Mbps | 20dBm | -81dBm |
| 48Mbps | 19dBm | -77dBm |
| 54Mbps | 18dBm | -75dBm |
| 802.11n/2.4GHz | ||||
|---|---|---|---|---|
| HT20 | Data Rate | Tx +/- 2dB (1TX) | Tx +/- 2dB (2TX) | Rx Sensitivity +/- 2dB |
| MCS 0 | 21dBm | 24dBm | -92dBm | |
| MCS 1 | 21dBm | 24dBm | -92dBm | |
| MCS 2 | 21dBm | 24dBm | -90dBm | |
| MCS 3 | 20dBm | 23dBm | -86dBm | |
| MCS 4 | 20dBm | 23dBm | -83dBm | |
| MCS 5 | 20dBm | 23dBm | -79dBm | |
| MCS 6 | 18dBm | 21dBm | -77dBm | |
| MCS 7 | 16dBm | 19dBm | -75dBm | |
| HT40 | MCS 0 | 20dBm | 23dBm | -89dBm |
| MCS 1 | 20dBm | 23dBm | -89dBm | |
| MCS 2 | 20dBm | 23dBm | -87dBm | |
| MCS 3 | 19dBm | 22dBm | -83dBm | |
| MCS 4 | 19dBm | 22dBm | -79dBm | |
| MCS 5 | 19dBm | 22dBm | -76dBm | |
| MCS 6 | 18dBm | 21dBm | -75dBm | |
| MCS 7 | 16dBm | 19dBm | -73dBm | |
| 802.11a | ||
|---|---|---|
| Data Rate | Tx +/- 2dB (1TX) | Rx Sensitivity +/- 2dB |
| 6Mbps | 20dBm | -92dBm |
| 9Mbps | 20dBm | -90dBm |
| 12Mbps | 20dBm | -89dBm |
| 18Mbps | 20dBm | -86dBm |
| 24Mbps | 20dBm | -83dBm |
| 36Mbps | 18dBm | -80dBm |
| 48Mbps | 16dBm | -76dBm |
| 54Mbps | 15dBm | -75dBm |
| 802.11n/5GHz | ||||
|---|---|---|---|---|
| HT20 | Data Rate | Tx +/- 2dB (1TX) | Tx +/- 2dB (2TX) | Rx Sensitivity +/- 2dB |
| MCS 0 | 19dBm | 22dBm | -94dBm | |
| MCS 1 | 19dBm | 22dBm | -91dBm | |
| MCS 2 | 19dBm | 22dBm | -89dBm | |
| MCS 3 | 18dBm | 21dBm | -85dBm | |
| MCS 4 | 18dBm | 21dBm | -82dBm | |
| MCS 5 | 17dBm | 20dBm | -77dBm | |
| MCS 6 | 16dBm | 19dBm | -76dBm | |
| MCS 7 | 14dBm | 17dBm | -74dBm | |
| HT40 | MCS 0 | 18dBm | 21dBm | -90dBm |
| MCS 1 | 18dBm | 21dBm | -89dBm | |
| MCS 2 | 18dBm | 21dBm | -86dBm | |
| MCS 3 | 17dBm | 20dBm | -82dBm | |
| MCS 4 | 17dBm | 20dBm | -79dBm | |
| MCS 5 | 16dBm | 19dBm | -75dBm | |
| MCS 6 | 15dBm | 18dBm | -73dBm | |
| MCS 7 | 14dBm | 17dBm | -72dBm | |
| 802.11ac | ||||
|---|---|---|---|---|
| VHT20 | Data Rate | Tx +/- 2dB (1TX) | Tx +/- 2dB (2TX) | Rx Sensitivity +/- 2dB |
| MCS 0 | 19dBm | 22dBm | -94dBm | |
| MCS 1 | 19dBm | 22dBm | -92dBm | |
| MCS 2 | 19dBm | 22dBm | -89dBm | |
| MCS 3 | 18dBm | 21dBm | -85dBm | |
| MCS 4 | 18dBm | 21dBm | -82dBm | |
| MCS 5 | 17dBm | 20dBm | -77dBm | |
| MCS 6 | 16dBm | 19dBm | -76dBm | |
| MCS 7 | 14dBm | 17dBm | -74dBm | |
| MCS 8 | 13dBm | 16dBm | -70dBm | |
| VHT40 | MCS 0 | 18dBm | 21dBm | -90dBm |
| MCS 1 | 18dBm | 21dBm | -89dBm | |
| MCS 2 | 18dBm | 21dBm | -87dBm | |
| MCS 3 | 17dBm | 20dBm | -82dBm | |
| MCS 4 | 17dBm | 20dBm | -79dBm | |
| MCS 5 | 16dBm | 19dBm | -75dBm | |
| MCS 6 | 15dBm | 18dBm | -73dBm | |
| MCS 7 | 14dBm | 17dBm | -72dBm | |
| MCS 8 | 13dBm | 16dBm | -68dBm | |
| MCS 9 | 13dBm | 16dBm | -66dBm | |
| VHT80 | MCS 0 | 18dBm | 21dBm | -88dBm |
| MCS 1 | 18dBm | 21dBm | -85dBm | |
| MCS 2 | 18dBm | 21dBm | -83dBm | |
| MCS 3 | 17dBm | 20dBm | -79dBm | |
| MCS 4 | 17dBm | 20dBm | -76dBm | |
| MCS 5 | 16dBm | 19dBm | -72dBm | |
| MCS 6 | 15dBm | 18dBm | -70dBm | |
| MCS 7 | 14dBm | 17dBm | -68dBm | |
| MCS 8 | 13dBm | 16dBm | -64dBm | |
| MCS 9 | 13dBm | 16dBm | -62dBm | |
| Power Characteristics | |
|---|---|
| Input Voltage | 12-48 VDC |
| Input Current (12VDC) | 0.56 A @ 12 VDC |
| Power Consumption | Approximately 6.72W (Max) |
| Reverse Polarity Protection | Yes |
| Connection | 3-pin Lockable Terminal Block |
| Mechanical | |
|---|---|
| Dimensions | 47x110x90 mm |
| Installation | DIN-Rail, wall mount (optional kit) |
| Reset Button | Yes |
| Ingress Protection Rating | IP30 Protection |
| Environmental Limits | |
|---|---|
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Ambient Relative Humidity | 5% to 95%, 55°C (Non-condensing) |
