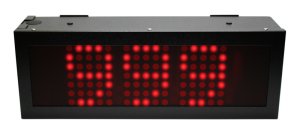

GBMC Up-Down Counter 3 Digit Large Display
Large three digit pulse counter. Separate up and down pulse inputs suitable for NPN, PNP, or dry contact. 10cm high digits. 24V DC Powered.
This large high performance digital panel meter features a bright 100 mm high display which can be seen 50 meters away. Setup is done using a handheld infra-red remote.
Features:
- Accepts NPN, PNP and dry-contact signals (jumper selectable)
- Separate up and down count inputs
- Dot-matrix digits for better readability when compared to 7-segment displays
- Pre-division & pre-multiply function for input pulse
- Parameters set by infrared remote control
- Easy connection using pluggable screw terminals
- Password protection to prevent tampering
Power supply: 24 VDC
Power consumption: 10VA (all functions output)
Output: 24 VDC for proximity sensors
Accuracy: ±0.03% F.S.
Input filtering modes: 400 Hz and 10 kHz
Communication: RS-485 Modbus RTU mode
Sampling cycle:
- 10 cycles / sec: >10Hz
- f cycles /sec: ≤10Hz
Display range: Max to 99999
Display scale range: Max to 99.999
Parameters setting: Infrared Remote Control
Operating temperature: 0 to 60 C
Operating humidity: 20 to 90% RH (non-condensing)
Dimensions: 420 × 150 × 100 mm.
Note: The datasheet shows a range of configurations, not all of which we stock. Non-standard options (analog output, extra alarms, RS-485) are available but may be subject to different pricing. Lead time on non-stocked configurations is usually 2 to 3 weeks.
