GBMT Temperature K T/C Input 3 Digit Large Display

GBMT Temperature K T/C Input 3 Digit Large Display

SKU: DBI-024K

Large three digit Temperature indicator accepts a K Thermocouple signal. 10cm High digits. 24V DC Powered.

Alish
  • Manufacturer: Alish
Buy more for less:
1-4items$284.08/ each
5-9items$255.67/ eachsave10%
10or more items$241.47/ eachsave15%
  • $284.08
Qty:
In stock(1 item available)

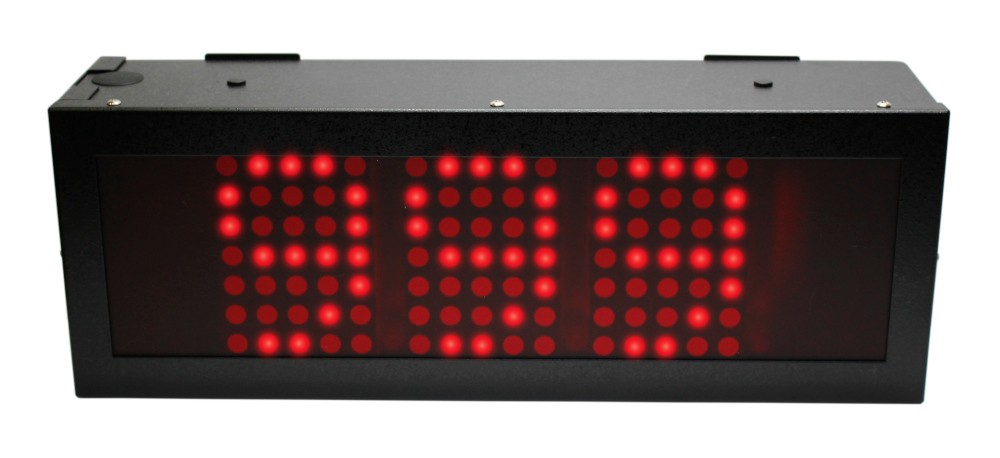

This large high performance digital panel meter features a bright 100 mm high display which can be seen 50 metres away. Setup is done using a handheld infra-red remote. Features one temperature control relay output and one alarm relay output

If you need to open the front panel of the display for any reason, please be very careful as you can easily damage the remote connection. We will not cover this damage under warranty

Features:

  • Dot-matrix digits for better readability when compared to 7-segment displays
  • Parameters set by infrared remote control
  • Max. Hold / Data Hold / Reset
  • Easy connection using plugabble screw terminals
  • Password protection to prevent tampering
  • One control Output
  • One Alarm Output

Power supply: 24 VDC

Power consumption: 8.5 VA

Input type: K thermocouple

Input frequency: 400 to 10KHz

Accuracy: ±0.2% F.S, ±0.5 °C (Cold junction compensation)

Display: Dot-matrix digits for better readability when compared to 7-segment displays

Display range: -199 to 999 with selectable decimal point

Sampling time: Up to 60 cycles/sec

Back up memory: EEPROM

Parameters setting: Infrared remote control

Polarity Indication: Automatic with "-" indication

Working temperature: 0 to 60 °C

Working humidity: 20 to 90% RH

Storage temperature: -10 to 70 °C

Storage humidity: 20 to 90% RH

Dimensions: 420 × 150 × 100 mm

    • SKU
      DBI-024K
    • Weight
      3.2 kg
    • Dimensions (L x W x H)
      45 x 20 x 15 cm

Note: The datasheet shows a range of configurations, not all of which we stock. Non-standard options (eg. extra alarms) are available but may be subject to different pricing. Lead time on non-stocked configurations is usually 2 to 3 weeks.
