Bacnet MS/TP - Vantage Pro2 Weather Station Kit
  • New!

Bacnet MS/TP - Vantage Pro2 Weather Station Kit

SKU: ECS-402x (Bacnet)

Complete weather station kit featuring a Vantage Pro2 with a BACnet MS/TP gateway. The kit includes the weather station, Envoy, and gateway, and is available in both wireless and cabled versions of the Vantage Pro2. Options include Standard, Standard with Fan, Plus, and Plus with Fan. The Plus version comes with additional UV and solar radiation sensors.

** Dear customer, please be aware that we are unable to ship Davis Instruments weather stations outside of Australia. However, the Gateway can still be shipped worldwide.

Davis Instruments
  • Manufacturer: Davis Instruments
  • $1700.86
Qty:
In stock(3 items available)

The Davis Vantage Pro2 weather station is a research-grade system that delivers professional-quality data for weather enthusiasts, researchers, farmers, and meteorologists. It provides real-time readings of wind speeds up to 200 mph, temperature, humidity, barometric pressure, rainfall, and other key metrics such as heat index, dew point, highs and lows, and more.

The sensor suite features a detachable anemometer for flexible placement. Users can also add a Solar Radiation Sensor, a UV Sensor (Plus), and a Daytime Fan Aspirated Radiation Shield Kit (Standard with Fan OR Plus with Fan) for enhanced functionality. The Vantage Pro2 sensors are NIST-traceable, ensuring reliable and accurate weather data reporting for professional use.

Included with the Kit:

  • The Serial WeatherLink Cable
  • The BACnet Gateway
  • The Cabled or Wireless Envoy
  • The ISS

All of our weather station equipment is configured with radios set to frequencies that comply with Australian regulations.

Ordering Information:

  • ECS-4021  Wired | Standard
  • ECS-4022  Wired | Plus
  • ECS-4023  Wireless | Standard
  • ECS-4024  Wireless | Plus
  • ECS-4025  Wireless | Standard | Fan
  • ECS-4026  Wireless | Plus | Fan

The Davis Vantage Pro2 weather station is a research-grade system that provides professional-grade data for weather enthusiasts, researchers, farmers, and meteorologists. It offers real-time measurements of wind speeds up to 200 mph, temperature, humidity, barometric pressure, rainfall, and additional metrics such as heat index, dew point, highs and lows, and more.

The sensor suite features a detachable anemometer for flexible placement. For enhanced functionality, users can add a Solar Radiation Sensor, a UV Sensor (available with the Plus version), and a Daytime Fan Aspirated Radiation Shield Kit (available with the Standard with Fan or Plus with Fan versions).

Data available:

  • Indoor Temperature and humidity (Weather Envoy)
  • Outdoor Temperature and humidity  (Integrated Sensor Suite)
  • Instantaneous wind speed and 10-minute average wind speed
  • Wind direction
  • Current barometric pressure
  • Rain rate
  • The volume of rain in the last day, month and year
  • Date and time of the last storm and volume of rain in the last storm
  • Status of alarms
  • Forecast status
  • Time of sunrise and sunset

All of the above data can be accessed via Bacnet MS/TP with the Ocean Control Bacnet MS/TP Gateway (KTA-402). The Vantage Pro2 Bacnet Weather Station Kit is highly customizable to fit your specific application. You can select from the following compatible hardware options:

Standard or Plus ISS

The Integrated Sensor Suite (ISS) consists of a rain collector, temperature and humidity sensors, and an anemometer (with a 12m cable for flexible placement away from the ISS). To enhance accuracy, the temperature and humidity sensors are housed within a radiation shield that protects them from solar radiation and other sources of reflected or radiated heat. The ISS is available in two variants:

  • Standard ISS: Contains rain collector, temperature, humidity, wind speed & direction sensors.
  • ISS Plus: Adds solar radiation and UV sensors to the standard ISS.

Wired or Wireless

The ISS can transmit data to the weather station either through a cable or wirelessly.

Naturally or Fan Aspirated

Both wireless and cabled ISS modules can be equipped with either a naturally aspirated or fan-aspirated radiation shield. These shields help prevent solar radiation from impacting temperature measurements. The naturally aspirated shield limits solar radiation-induced temperature measurement errors to less than 2°C under worst-case conditions. The fan-aspirated version pulls external air through the sensor body, reducing the error to less than 0.3°C in the worst-case scenario.

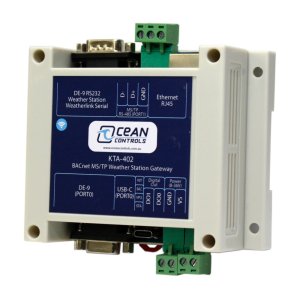

BACnet MS/TP Gateway

The BACnet MS/TP gateway enables the transmission of weather data to any BACnet network. It supports device and object discovery, making it simple to configure.


To download detailed specification sheets, please click on the links for the parts listed below:

Part Number
Version
Parts
ECS-4021
Wired | Standard
ECS-4022
Wired | Plus
ECS-4023
Wireless | Standard
ECS-4024
Wireless | Plus
ECS-4025
Wireless | Standard | Fan
ECS-4026
Wireless | Plus | Fan
