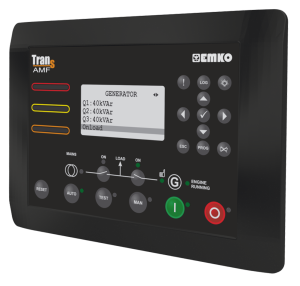

Automatic Generator and Transfer Control Panel Trans-Midi.AMF
The Trans-Midi AMF is an advanced Automatic GenSet Controller with seamless transfer switching, designed to ensure uninterrupted power supply by automatically managing generator operations during mains failure.
Featuring a user-friendly interface, it enhances system efficiency and reliability.
Automatic GenSet Controller with Transfer Switching
- Log last 50 events & alarm information with measured values
- Statistics records
- Mains & Generator phase sequence control
- Selectable Resistive sender types; Pt-100 VDO, US, GM, Ford, Datcon, etc...
- CanBus J1939 ECU communication
- SPN, FMI and OC values reading from engines via J1939
- Remote Start/Stop Speed and Idle mode Control via J1939
- Local Remote Control and Visualisation function
MPN: Trans-Midi.AMF.MPU.485.TR
| Features | Descriptions |
| LCD Languages | English/Chinese, English/Deutch, English/Turkish, English/Espanol, English/Francais, English/Russian |
| Inputs | 5x Configurable digital, 3x Analogue senders, Magnetic Pickup |
| Outputs | 6x Configurable transistor, Mains and Generator Contactor Outputs |
| Current Measurement | 3 phases CT inputs |
| Voltage Measurement | 3 phase mains, 3 phase generator |
| Case | |
| Dimensions | 158mm x 111mm x 67mm |
| Protection Class | NEMA 4X IP65 at front side |
| Operating Range | |
| DC Battery Supply range | 8 to 32Vdc, max.operating current is 370mA |
| Sender Measurement | 0 ... 1300 ohm, Accuracy: 1%FS, resolution: 1 ohm |
| Cabin.Temp.Measuremet | |
| Operating / Storage Temp. | -20°C with +70°C / -40°C with +80°C |
