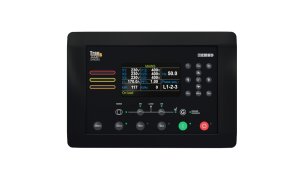

Automatic Generator and Transfer Control Panel Trans AMF Synchro
The TRANS AMF SYNCRO is a sophisticated Automatic Gen-Set Controller with transfer switching and load-sharing capabilities, ensuring reliable power management during mains failure.
It features easy setup, delivering seamless synchronization and efficient load distribution.
Perfect for critical power systems, it offers robust control and performance.
Automatic Gen-Set Controller with Transfer Switching & Load Sharing
- Mains voltages and frequency measurements
- Generator voltages and frequency measurements
- Peak lopping (mains or genset)
- Power export to mains
- Mains de-coupling protection with R.O.C.O.F and vector shift methods
- Manual voltage/frequency adjustment
- Direct/Reverse Governor andAVRcontrol
- Synchroscope display
- Logic Controller functionality for PLC
| Features | Descriptions |
| LCD Languages | English, Turkish |

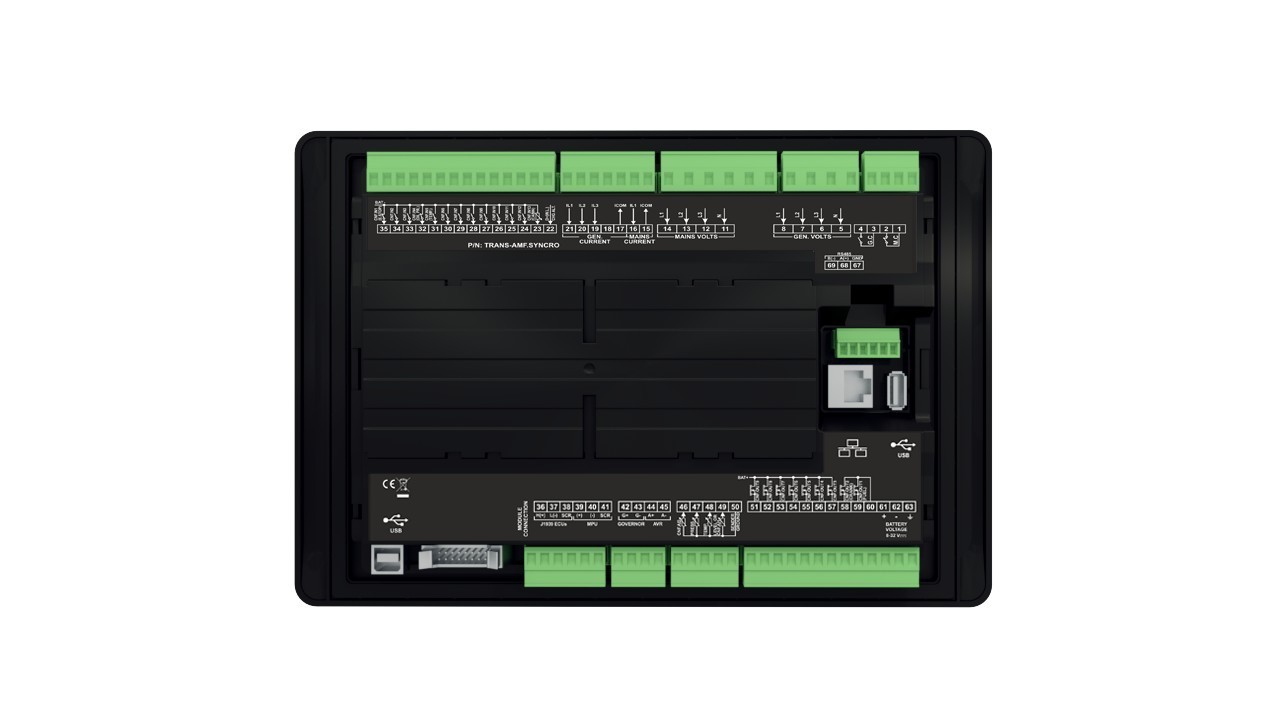

| Inputs | 13x Configurable digital, 4x resistive configurable input, Magnetic Pickup, Charge Alternator D+(WL) inputs |
| Outputs | Configurable 2x Relays, 7x Transistors, GBR outputs |
| Current Measurement | 3 phases CT inputs for Load Current, 1x CT input for Earth Current 3-300 Vac Phase-Neutral, 5-99.9 Hz. Accuracy: scale %1 Resolution: 1V, Harmonic: up to 11 harmonics. |
| Voltage Measurement | 3 phase mains, 3 phase generator 3-300 Vac Phase-Neutral, 5-99.9 Hz. Accuracy: scale %1 Resolution: 1V, Harmonic: up to 11 harmonics. |
| Case | |
| Dimensions | 276 mm x 189 mm x 45 mm. |
| Protection Class | IP65 at front side |
| Operating Range | |
| DC Battery Supply range | 8 to 32Vdc, max.operating current is 860mA |
| Sender Measurement | 0 to 1300 ohm, accuracy: 1%FS, resolution: 1 ohm |
| Operating / Storage Temp. | -20°C with +70°C / -40°C with +80°C |
| Expansions | |
| Internal | USB programming and communication port, Ethernet, RS485 |
| GPRS | Optional |
| Embedded WEB server | Optional |
| Serial ModBus | |
| Approvals | CE, GOST-R |
