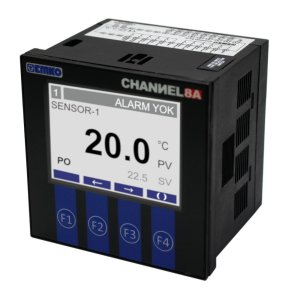

Channel8AN - 8 Channel Analogue Scanner 4-20mA/0-10V Inputs
The EPLC9600-CHANNEL8A series 8 channel scanner is intended for measuring and presentation of eight 4-20mA/0-10V Inputs max. USB Datalogging. Ethernet Modbus TCP communications. 24VAC/DC powered.
The EPLC9600-CHANNEL8A series 8 channel scanner are designed for measuring and logging temperature. Fitted with a 128 x 64 graphical LCD. They can be used in many applications with their PT-100 process input, alarm outputs, selectable alarm functions, RS-232 / RS-485 / Ethernet / USB communications.
Features
128 x 64 Graphical LCD display
3 Different alarm and pre-alarm types for each channel
(High, Low and Band Alarms)
Relay or (pnp “source”) transistor output
8 Analogue 4-20mA/0-10V Inputs
ON-OFF control
Sensor error detection
Adjustable offset
User defined channel labels
Display scan modes
Operating with Real Time Clock (RTC)
Data Logging to USB Flash Memory
Modbus RTU over TCP protocol
Options Available
Optional RS-232, RS-485 communication, pnp “source” transistor output
Specification
- Number of inputs: 8
- Input type: 4-20mA/0-10V Inputs
- Range: -200℃...650℃
- Accuracy: +/-0.25%
- Output type: electronic relay NO, 24V AC/35V DC, max. 200 mA
- Power supply: 24VAC/DC (-15% to +10%)
- Display: LCD, 128 x 64 pixels, graphic, amber or white backlight
- Communication Interface: Ethernet, Modbus TCP
- Operating temperature: 0...+50°C
- Protection class: IP 65 (front), IP 20 (case and connection clips)
- Case material: NORYL-GFN2S E1
- Mounting: panel
- Case dimensions: 96 x 96 x 100 mm
- Manufacturer: Emko Elecktronik
- Manufacturer Part No: CHANNEL8A-N.2.R.2EU
