SKU: HET-110

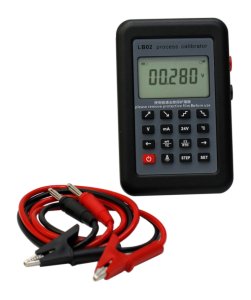

The BRT LB02  Process Calibrator Resistance RTD TC mA mV signal generator is widely used as a precision multifunction process calibrator and multimeter, temperature calibrator, RTD PT100 simulator, loop calibrator, etc.

  • Manufacturer: AE
Buy more for less:
1-4items$177.13/ each
5-9items$159.42/ eachsave10%
10or more items$150.56/ eachsave15%
  • $177.12
Qty:
In stock(2 items available)

BRT LB02 Process Calibrator Resistance RTD TC mA mV signal generator is widely used as a precision multifunction process calibrator and multimeter, temperature calibrator, RTD PT100 simulator, loop calibrator, etc. It covers almost all the functions required in PLC, DCS, ESD, field instrumentation, valves calibration and other maintenance applications. Its copper connector used makes the contact resistance minimal, innovative high efficient circuit design and layout makes its output and measurement more accurate. Compact and portable case, refined panel layout, user-friendly button, V, mV, mA, 24V, TC, RTD, curve, resistance signal input and output, etc. each function has a corresponding button makes the operation extremely simple. Moreover, electric safety standards, clear large LCD display with back light, ABS flame-retardant material used, 0.025% accuracy, it is an essential precision process calibration tool in the industrial site or lab.

New Features:

  • Pocket size: 90x70x28mm, very convenient to carry.
  • Small pocket size: 120x76x30mm, easy to carry; put it into your pocket, save cost and energy.
  • 2200mAH large capacity re-chargeable battery, can be used in the lab or outdoors industrial site.
  • High accuracy 0.025%+1/2 digits, high reliability and stability.
  • Signal generator, multifunction process calibrator and digital multimeter all-in-one.
  • High resolution LCD display, have back light for different lighting conditions, large screen clear display.
  • Signal output and simulation: 4-20mA source or passive signal, 0-11V, 0-110mV, 20-400O, standard R, E, S, K, J, B, T, N type thermocouple, PT100, CU50, 24V outputs, etc.
  • Measurement ranges: 0-30V, 0-150mV, 0-999.9O, standard R, E, S, K, J, B, T, N type thermocouple, PT100, CU50, 24V, 0-24mA, etc.
  • Fast response, no delay in signal source simulation and signal testing or measurement.
  • Have battery charging and status indicator to check the battery status easily.
  • Have description in V, mV, mA, RTD, TC, Step, and O keys, it enables user to operate it easily.
    DC voltage, mV small signal, resistance signal, dc current, thermocouple, RTD thermal resistance signal output and measurement, it equals to a process calibrator and digital multimeter.
  • AD, DA, reference voltage, OP circuits are designed by using all high accuracy stable IC to ensure good performance and high stability
  • Using 4 units of PPTC and a quick-break fuse to protect the instrument from damaged by high voltage and 5 * 20mm 200mA little quick fuse for replacements.


    • SKU
      HET-110
    • Weight
      0.22 kg
    • Dimensions (L x W x H)
      12.5 x 8.5 x 5.5 cm
