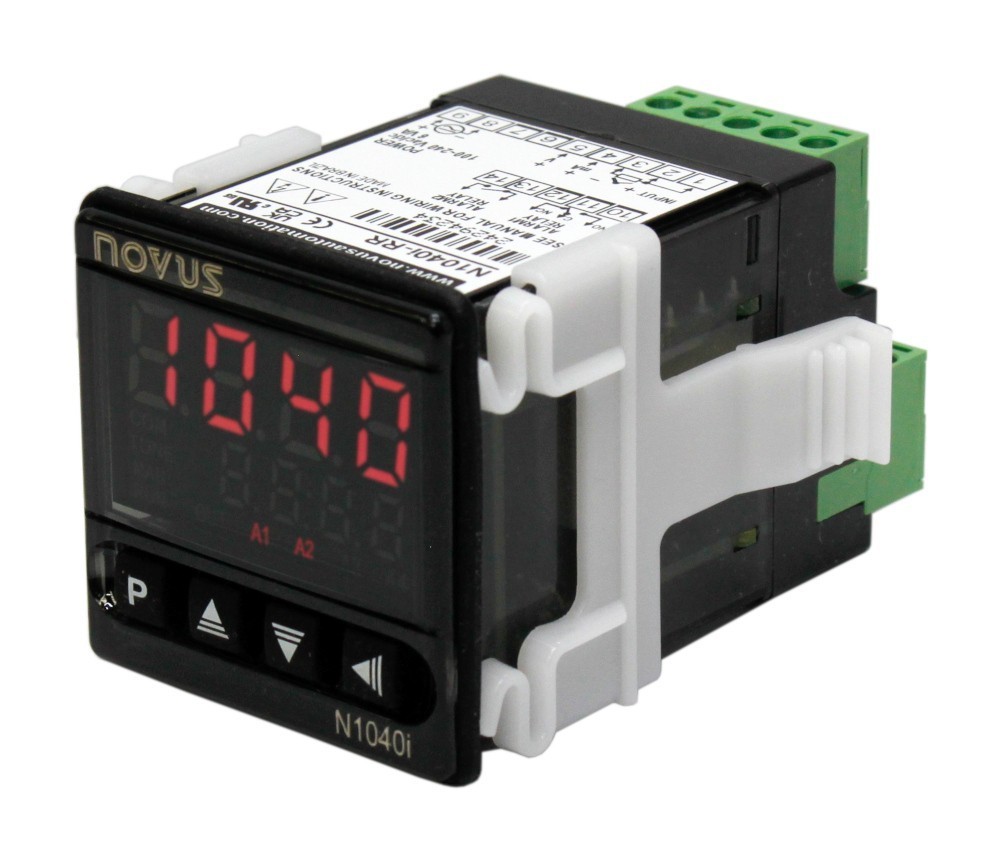

Universal Input N1040i-RR Process Indicator 240 VAC Powered , 2 alarm outputs

Universal Input N1040i-RR Process Indicator 240 VAC Powered , 2 alarm outputs

SKU: IPI-131

N1040i-RR Process indicator accepts thermocouple, Pt100, and linear current or voltage signals. Display range is configurable. 2 alarm outputs. 240 VAC powered.

Novus
  • Manufacturer: Novus
Buy more for less:
1-4items$111.36/ each
5-9items$100.22/ eachsave10%
10or more items$94.65/ eachsave15%
  • $111.36
Qty:
In stock(2 items available)

The Universal Indicator N1040i combines, in one compact and convenient 1/16 DIN enclosure, a high precision microprocessor based analog circuit with a very simple configuration interface to monitor a wide range of analog variables.

With a intuitive interface to program range and decimal point through the keypad, the N1040i allows inexperienced instrumentation operators easy installation and start up for most processes.

The N1040i-RR Process indicator features 2 alarm outputs.

Features:

  • Input adjustable offset allows small indication corrections
  • Configurable initial alarm blocking function doesn't "arm" alarm until the process has reached normal operating conditions
  • Flash alarm function alerts operator to condition while in alarm state
  • Sensor failure detection
  • Password for meter protection
  • Factory calibration parameters recovery
  • Certifications: CE, UL

Power supply: 100 to 240 VAC ±10%, 50/60 Hz

Maximum power consumption: 6 VA

Sensor input:

  • J, K, T, E, N, R, S, and B
  • Pt100
  • 0 to 50 mV
  • 4 to 20 mA
  • 0 to 5 VDC
  • 0 to 10 VDC

Output:

  • Output alarm 1: Relay SPDT; 240 Vac / 30 Vdc / 3 A
  • Output alarm 2: Relay SPST-NA; 240 Vac/ 30 Vdc / 1.5 A

Alarm functionality:

  • Minimum
  • Maximum
  • Differential
  • Minimum differential
  • Maximum differential
  • Sensor break alarm conditions

Accuracy:

  • Thermocouples J, K, T, E: 0.25% of the span or 1 ºC
  • Thermocouples N, R, S, B: 0.25% of the span or 3 ºC
  • Pt100: 0.2% of the span
  • 4 to 20 mA, 0 to 50 mV, 0 to 5 V, 0 to 10 V: 0.2% of the span

Display: Five digit 13 mm ultra bright LED display

Internal Resolution: 32767 levels (15 bits)

Display Resolution: 12000 levels (i.e -1999 to 9999)

Input reading rate: Up 55 per second

Programmable scaling: From -1999 to +9999 and adjustable digital filter

Operating temperature: 0 to 55 °C

Operating humidity: 80% at 30°C (For temperatures above 30°C, reduce 3% per °C)

Front panel: IP65, Polycarbonate UL94 V-2

Back panel: IP30, ABS+PC UL94 V-0

Weight: 75 g

Dimension: 48 x 48 x 80 mm

    • SKU
      IPI-131
    • Weight
      0.15 kg
    • Dimensions (L x W x H)
      8 x 8 x 6 cm
