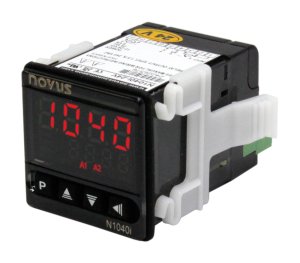

Universal Input N1040i Indicator, 24 VDC Powered (48x48mm)

In stock (2 items available)
  • Weight
    0.12 kg
  • SKU

N1040i Process indicator accepts thermocouple, Pt100, and linear current or voltage signals. Display range is configurable. 24 VDC powered.

Buy more for less:
Quantity ex GST incl GST Saving
1-4 items $117.36 / each N/A
5-9 items $105.63 / each N/A save 10%
10 or more items $99.73 / each N/A save 15%
  • $117.36

The Universal Indicator N1040i combines, in one compact and convenient 1/16 DIN enclosure, a high precision microprocessor based analog circuit with a very simple configuration interface to monitor a wide range of analog variables.

This low cost, tough and versatile indicator is compatible with most common thermocouple types, Pt100 RTD sensor and linear 4 to 20 mA and mV sensors.

With a intuitive interface to program range and decimal point through the keypad, the N1040i allows inexperienced instrumentation operators easy installation and start up for most processes.


  • Input adjustable offset allows small indication corrections
  • Flash alarm function alerts operator to condition while in alarm state
  • Sensor failure detection
  • Password for meter protection
  • Factory calibration parameters recovery

Power supply: 24 VDC

Power consumption: 6 VA

Universal input accepts:

  • Thermocouple inputs J, K, T, N, R, S, B, E
  • RTD Pt100
  • Linear 0-20 mA, 4-20 mA, 0-50 mV, 0-5 V e 0-10 V

Internal resolution: 32767 levels (15 bits)

Display resolution: 12000 levels (i.e -1999 to 9999)

Input reading rate: up 55 per second

Output: Up to 2 programmable alarm outputs

Output alarm 1: Relay SPDT; 240 Vac / 30 Vdc / 3 A

Output Alarm 2: Relay SPST-NA; 240 Vac/ 30 Vdc / 1.5 A


  • Thermocouples J, K, T, E: 0.25% of the span or 1 ºC
  • Thermocouples N, R, S, B: 0.25% of the span or 3 ºC
  • Pt100: 0.2% of the span
  • 4 to 20 mA, 0 to 50 mV, 0 to 5 V, 0 to 10 V: 0.2% of the span

Communication interface: RS-485 (Optional)

Certifications: CE, UL

Operating temperature: 0 to 50 °C

Operating humidity: 80% at 30°C (For temperature above 30°C, reduces 3% per °C)

Case: IP65, Polycarbonate (PC) UL94 V-2

Back panel: IP30, ABS+PC UL94 V-0

Weight: 75 g

Dimension: 48 x 48 x 80 mm
