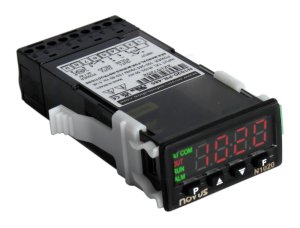

N1020-485 PID Temperature Controller with RS-485 & mini USB

In stock (3 items available)
  • Weight
    0.15 kg
  • SKU
    NOC-305

N1020 micro-size auto-adaptive PID temperature controller with universal input, mini USB interface and RS-485 interface with Modbus RTU protocol. Full range power supply accepts 24 VDC to 240 VAC.

Buy more for less:
Quantity ex GST incl GST Saving
1-4 items $158.29 / each N/A
5-9 items $116.52 / each N/A save 26%
10 or more items $110.05 / each N/A save 30%
  • $158.29
Qty:

The Novus N1020 PID controller features advanced performance capability for the most complex and critical applications and 1/32 DIN size for mounting in space-critical applications.

The sophisticated auto-adaptive PID algorithm continuously adjusts the PID parameters for best controlling performance. The programmable input accepts a range of thermocouples, PT100 RTDs or a 0 to 50 mV signal. Two outputs are available - one relay output and one pulse output for interfacing to an SSR for fully-variable control.

Features:

  • Auto-adaptive PID control
  • PID parameters auto-tuning
  • Configurable alarms with 8 different functions
  • Alarm inhibit function at start up
  • Programmable timer
  • “F” key with 3 possible functions
  • Soft-start function
  • Ramp function
  • Measured value offset
  • Minimum and maximum limits for SP setting
  • Minimum and maximum limits for output value
  • Access password for configuration protection
  • Factory calibration settings restoration feature
  • Silicone keypad
  • CE certification

Power supply:

  • 24 to 240 VDC ±10 %
  • 100 to 240 V AC ±10 %, 50/60 Hz

Power Consumption: 5 VA

Sensor input:

  • J, K, T, N, R, S, B and E thermocouples
  • Pt100 RTD
  • 0 to 50 mV

Internal Resolution: 15 bit (32767 levels)

Display Resolution: 12,000 levels (from -1999 to 9999)

Input Sampling Rate: Up to 55 Hz

Accuracy (J, K, T, E thermocouples): 0.25 % of span ±1 °C

Accuracy (N, R, S, B thermocouples): 0.25 % of span ±3 °C

Accuracy (PT100): 0.2 % of span

Accuracy (mV): 0.1 %

Display: High brightness red LED display

Communication protocol: USB & RS-485 Modbus RTU

Input Impedance (PT100 and thermocouples): > 10 MΩ

PT100 Excitation Current: 170 µA

Output functions: Control, alarm 1, alarm 2

Output 1: Voltage pulse 5 V, 25 mA

Output 2: SPST relay, 240 VAC, 1.5 A

Programmable PWM cycle: From 0.5 seconds to 100 seconds

Front panel: IP65, polycarbonate UL94 V-2

Enclosure: IP20, polycarbonate UL94 V-2

Weight: 75 g

Dimension: 25 x 48 x 105 mm
