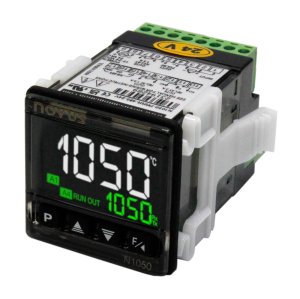

N1050-PRRR-485 PID Temperature Controller, 24VAC/DC Powered

N1050-PRRR-485 PID Temperature Controller, 24VAC/DC Powered

SKU: NOC-333

N1050-PRRR-24VAC/DC Compact sized PID temperature controller with vivid LCD display, auto tuning PID, soft start and ramp and soak. Input accepts thermocouples J, K, T and Pt100 sensors. Pulse and 3 Relay outputs. Fitted with RS485 Modbus connection

Novus
  • Manufacturer: Novus
Buy more for less:
1-4items$132.21/ each
5-9items$118.99/ eachsave10%
10or more items$112.37/ eachsave15%
  • $132.20
Qty:
In stock(1 item available)

N1050 is an advanced high performance PID temperature controller featuring a vivid LCD display in a modern design package. It combines the proven robustness of NOVUS PID algorithm with a large and bright easy-to-read multicolor 11-segment LCD display with alphanumeric mnemonics and crystal clear status signaling.

Besides the PID auto-tuning capability, N1050 outputs PWM control mode through pulse or relay. Fitted with 3 output relays which can be selected for PWM Control or alarms. It also features 5 ramp-and-soak profile programs, soft start output and timer function which complement the advanced features of the controller. With password protected, all parameters are configurable by the display menu, via USB port or optional RS485 Modbus interface.

Easy to install and maintain due to its detachable connector, N1050 offers the lowest power consumption in the market. Housed in anti-flame material, it has 48x48 mm (DIN 1/16) format and low profile front panel. Suitable for hostile environments, it complies with standard EMC regulations, providing robustness and reliability including untapped temperature applications.

Software can be downloaded from Novus Automation website

  • Quick Tune software can be used to configure the N1050. Connects to USB port
  • Field Chart can be used to monitor and log the operation of the N1050. Connects to USB port or RS485 port

Power supply: 12 to 24 Vdc

Power Consumption: 6 VA

Sensor input:

  • J, K, T, thermocouples
  • Pt100 RTD

Internal Resolution: 15 bit (32767 levels)

Display: LCD type, alphanumeric with 11 segments.

Display Resolution: 12,000 levels (from -1999 to 9999)

Input Rate: Up to 10 per second

Accuracy (J, K, T thermocouples): 0.25 % of span ±1 °C

Accuracy (PT100): 0.2 % of span

PID Features: PWM, Auto tune

Control Action: 1 Loop (Heat or Cool)

Output Control: 1 Pulse and  3 Relays

Special Functions: Soft-Start, PID Loop Break, Ramp and Soak event, 2 Alarms (7 alarm types) and Timer Function

Configuration: Software NOVUS NConfig, via USB (micro-B type)

Communication protocol: RS-485 Modbus RTU  (Optional)

Input Impedance (PT100 and thermocouples): > 10 MΩ

PT100 Excitation Current: 170 µA

Outputs:

Output 1: Voltage pulse 5 V, 25 mA

Output 2 and 3: SPST relay, 240 VAC, 1.5 A

Output 4: SPDT relay, 240 VAC, 3 A

Ramp & Soak: 5 Programs, 4 Segments

Programmable PWM cycle: From 0.5 seconds to 100 seconds

Operating environment: 0 to 50 ºC,

Relative humidity: 80 % RH (For temperature more than 30°C, reduce 3% for each °C)

Front panel: IP65, polycarbonate UL94 V-2

Enclosure: IP20, polycarbonate UL94 V-2

Dimension: 48 x 48 x 80 mm

    • SKU
      NOC-333
    • Weight
      0.15 kg
    • Dimensions (L x W x H)
      11 x 7 x 4 cm
