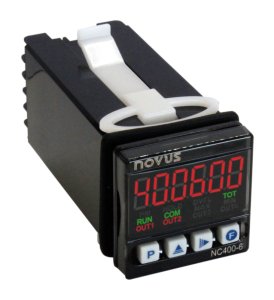

NC400 6 Digit Counter with 1 Relay and 1 Pulse Output, RS-485, 24V

In stock (1 item available)
  • Weight
    0.22 kg
  • SKU
    NOV-406

6 digit up/down/quadrature/add/subtract counter with batch and totaliser functions. 1 SPST relay and 1 5 V pulse output. RS-485 Modbus RTU. 24 V powered

Buy more for less:
Quantity ex GST incl GST Saving
1-4 items $157.96 / each N/A
5-9 items $142.16 / each N/A save 10%
10 or more items $134.25 / each N/A save 15%
  • $157.96
Qty:

This programmable 6-digit counter is also a batch counter and totaliser, performs quadrature counting and accepts remote reset. Its 2 outputs with built-in timers can be activated at any of the 3 counter presets: unit, batch or totaliser. It features a configurable function key, full scale adjustment and several other advanced options. RS-485 communication allows the unit to function as a Modbus RTU slave

Features:

  • Inputs configurable to accept NPN, PNP, dry contact (relay, switch, etc) or voltage pulse.
  • Up, down, quadrature, sum and difference counting modes
  • Replaceable internal battery for retaining counter values in the event of a power failure
  • External hold and reset inputs
  • Configurable front-panel F key can be used as counter hold, counter reset or outputs reset.
  • Batch count and totaliser functions
  • RS-485 Modbus RTU communication

Power supply: 100 to 240 Vac/dc ± 10%, 50/60 Hz; optional 24 Vdc/ac

Power consumption: 9 VA Max

Supply output: 12 V dc/50 mA

Outputs triggering timing: 0.01 to 9999.99 s

Pulse output: 5 Vdc

Output impedance: 100 Ω

Relay outputs: SPST 1.5 A at 240 Vac

Display: 6-digit red display 12 mm-high

Counting inputs, hold and reset:

  • Low level: < 2 Vdc
  • High level: > 3 Vdc
  • Input impedance: 4700 Ω
  • Maximum input voltage: ± 30 Vdc
  • Dry-contact input polarization: 5V / 4700 Ω

Max. counting frequency: 20 kHz, 4 kHz or 55 Hz, depending on the counting mode selected

Scaling factor: Configurable from 0.01 to 999999 s

Battery: Lithium CR2032. 4-year autonomy

Operating environment: 5 to 50 °C, 30 to 80 %RH

Rated: CE and UL

Front panel: Polycarbonate UL94C-2, IP65

Case: ABS+PCUL94V-0, IP20

Weight:130 g

Panel cutout: 45.5 x 45.5 mm

Dimension: 48 x 48 x 110 mm
