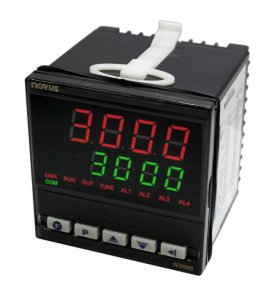

N3000-4R PID Process Controller with 4 Relays and USB, 240 V
Novus N3000 universal, big digit, auto-tuning PID controller with 4 × relays, analog retransmission, remote set point and USB, 100 to 240 VAC/DC Powered.
The N3000 Big Digit Universal Process Controller is a real breakthrough in versatility for holding in one single instrument all the major features required in the vast majority of industrial processes.
With a sophisticated and consistent software and its advanced truly universal circuitry, the N3000 accepts configuration of both input signal and control output through the front keyboard without any internal hardware change.
Power supply for remote loop powered transmitters is standard and is a must for high-end applications.
From the very simple applications as a temperature controller to the most complex systems of distributed control with PLCs or SCADA networks, the N3000 is the right answer to your needs for industrial or laboratory automation.
Configuration can be performed directly on the controller or through the USB interface. The free QuickTune software for Windows is the configuration management tool. When connected by USB, the controller appears as a serial port on the host computer.
Quicktune can be used to batch program these controllers via USB, even when the controller is unpowered.
The controller acts as a Modbus RTU slave on the USB port.
Features:
- One digital input for dry contact with 5 programmable functions.
- Auto tuning PID control.
- Auto/Manual mode, bumpless transfer.
- Programmable Soft start up to 9999 seconds.
- Up to four configurable relays, two timer alarms.
- Alarm functions: LO, HI, differential, differential LO, differential HI, sensor break and event.
- Alarm initial blocking function.
- Circuitry can be removed from the front panel.
Power supply: 240 Vac/dc, 50/60 Hz
Maximum consumption: 3 VA
sampling rate: 5 per second
Analog output: 0-20 mA or 4-20 mA
Digital input: Dry contact or NPN open collector
Accepts inputs:
- Thermocouples type J, K, T, N, R, S
- Pt100 RTD
- Linear 4-20 mA, 0-50 mV, 0-5 Vdc.
Second analog input: 4 to 20 mA remote setpoint (Standard)
Accuracy:
- Thermocouples J, K, T: 0.25% of span ±1°C
- Thermocouples N, R, S: 0.25% of span ±3°C
- Pt100: 0.2% of span
- 4-20 mA, 0-50 mV, 0-5 Vdc: 0.2% of span
Internal resolution: 19500 levels
Ramp and Soak: 7 programs of up to 7 segments each. Can be linked to create longer programs of up to 49 segments.
Display: Double LED display (red for PV and green for SV )
Display resolution: 12000 levels (-1999 to 9999)
Control output:
- 2 relays SPDT (I/O1 and I/O2) - 3 A /240 Vac
- 2 relays SPST-NA (I/O3 and I/O4) - 1.5A / 250 Vac
- Logic pulse for SSR drive (I/O5): 10 Vmax / 20mA
EMC: EN 61326-1:1997 and EN 61326-1/A1:1998
Operating environment: 0 to 55 ºC
Operating humidity: 20 to 85 % RH
Protection:
- Frontal: IP65
- Case: IP30
Weight: 330 g
Panel cutout: 93 × 93 mm
Dimensions: 96 × 96 × 92 mm
- Download the N3000 Flyer
- Download the N3000 Operating Manual
- NConfig 1.4.1.07 Windows Installer
- Download the Selection Guide
QuickTune Software:
This controller can be configured and monitored using the QuickTune software
