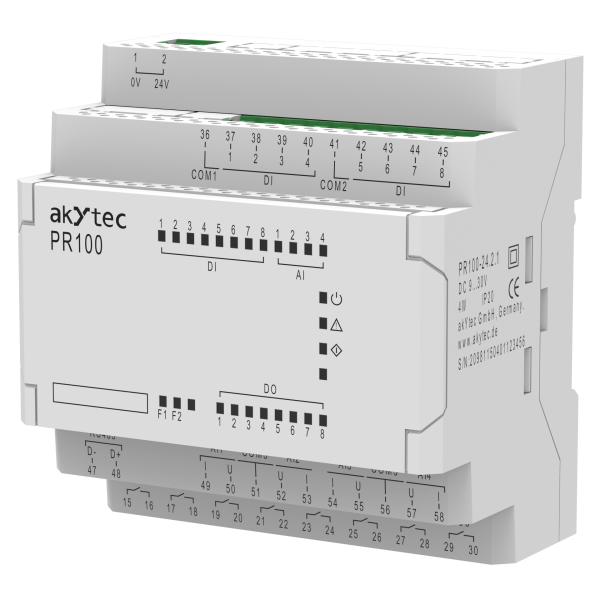

PR100 Mini-PLC 20 I/O
PR100 is a compact PLC equipped with a total of 20 built-in inputs and outputs, and designed to solve basic automation tasks in lighting control, pumping control, ventilation and heating control, and in other small-scale control systems.
PR100 is a compact PLC designed to solve basic automation tasks in, for example, lighting control, pumping control, ventilation and heating control, and other simple control systems.
With its minimum width, which measures as narrow as five standard MCBs placed inline, and dedicated enclosure form, macro PLC PR100 allows for space-saving installation even in smaller consumer units , not to mention control cabinets. This device can operate in non-heated environments down to -40°C as well as in heated ones in temperatures up to +55°C.
An application program is written in function block format in the akYtec ALP programming software available free of charge. The control algorithm is uploaded to the device memory through a micro USB cable.
Functions and features

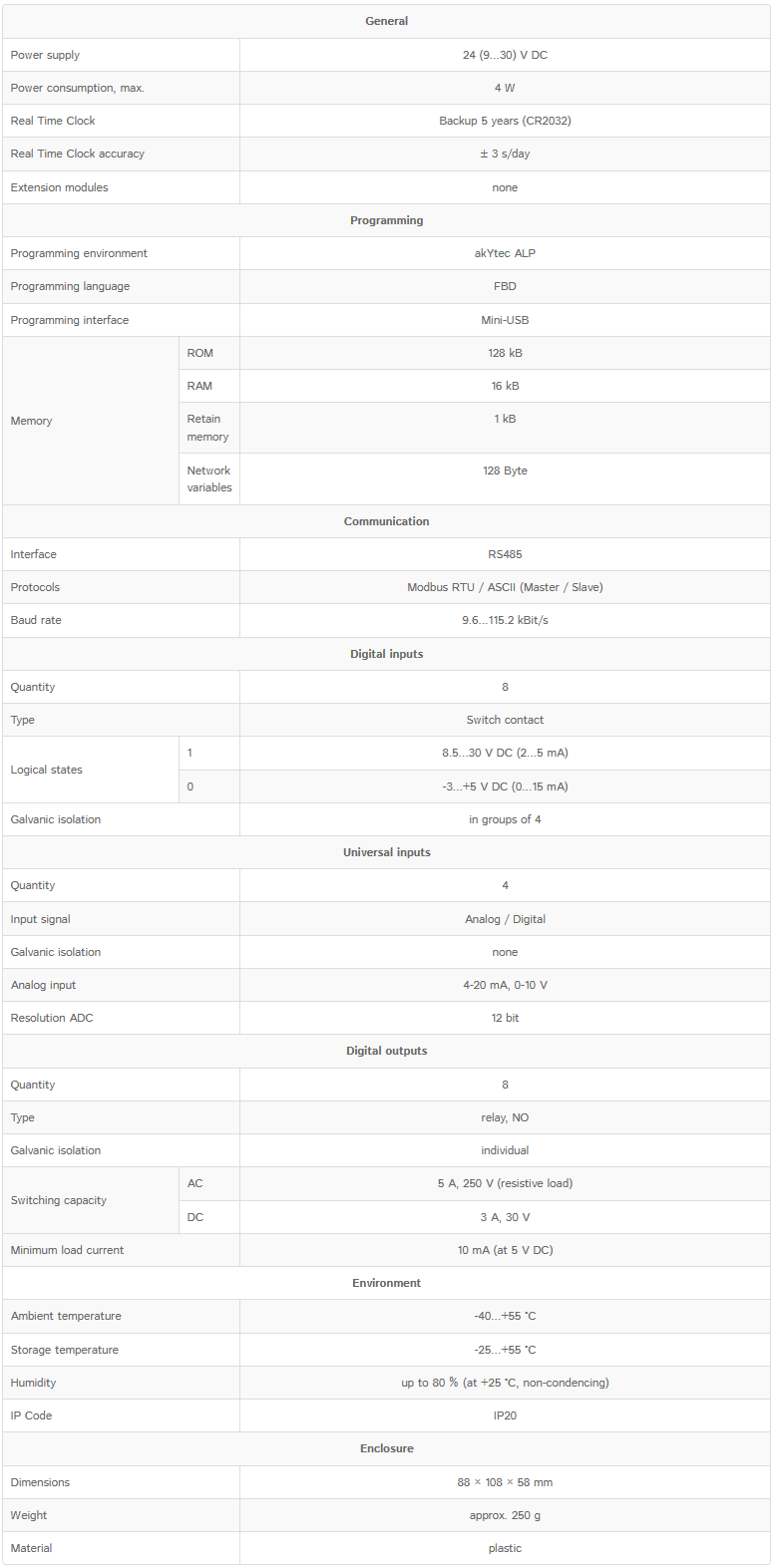

- 20 I/O points (8DI + 8DO + 4AI, see the Specifications table down the page for details)
- Support for analog signals of type 4-20 mA or 0-10 V
- RS485 interface and Modbus RTU/ASCII (Master/Slave
- Extended operation temperature range: -40…+55 ºС
- USB-powered in the programming mode
- Software-based features include: retain variables, day timer, week timer, PID control, etc.
Enclosure design features
- Compact enclosure (5x standard MCB = 90mm in width) suitable for installation into a domestic consumer unit as well as into any control cabinet
- Removable terminal blocks
- Convenient battery replacement
Variants
| PR100.24.2.1 | 24 V DC, 8DI + 8DO + 4AI, 1x RS485 (Modbus RTU/ASCII) |
