RHT-P10 Temp and Humidity Transmitter with Sealed Remote Sensor 0 to 10 V

SKU: RHT-055

Temperature and humidity sensor for high pressure or vacuum systems consists of wall mount transmitter and sensor with ½" NPT thread. Independent 0 to 10 V outputs.

1-4items	$228.28/ each
5-9items	$205.45/ each	save10%
10or more items	$194.04/ each	save15%

The relative humidity and temperature transmitters RHT-P10, RHT-XS, RHT-WM and RHT-DM are microprocessor based instruments that incorporate high accuracy and stable sensors.

Using the digital communication interface TxConfig (SIG-008), the transmitter parameters can be configured to tailor a particular application.

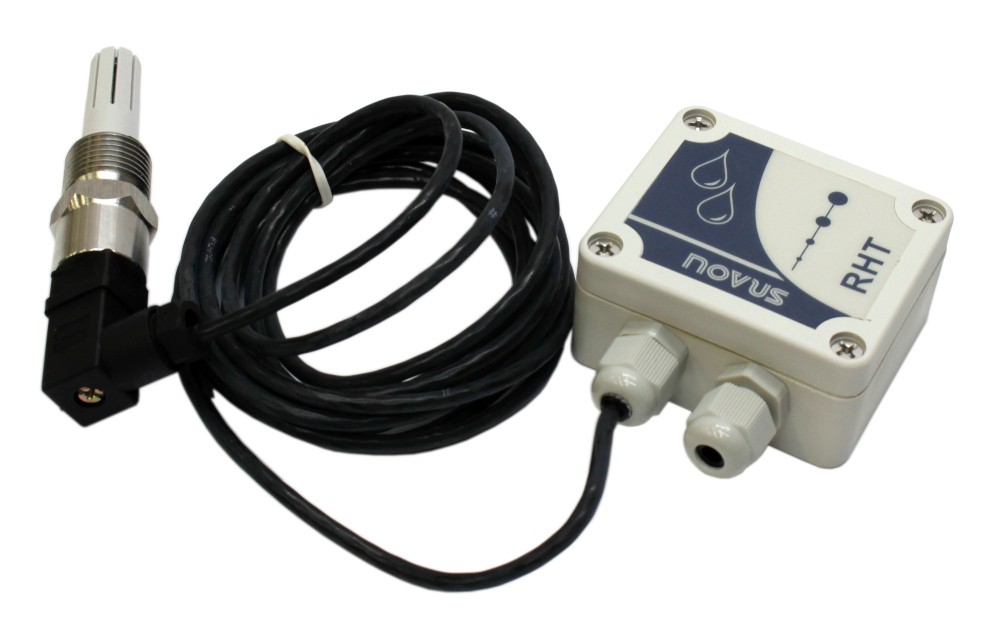

The RHT-P10 transmitter can be wall mounted and comes with the sensor on a 3 m cable (Optional 6m cable extra $20+GST). The sensor has a ½" NPT thread and can withstand up to 145 PSI.

The sensor comes with two interchangeable tips:

A slotted polyamide tip (fastest response, least protection)
A high density polyethylene tip (slower response, particulate protection)

Features:

Programmable ranges for both outputs
Internal reverse polarity protection

- SKU
  RHT-055
- Weight
  0.35 kg
- Dimensions (L x W x H)
  14 x 11 x 7 cm

Power supply: 18 to 30 VDC

Output: Dual 0 to 10 V

Minimum output load (RL): 10 kΩ

Temperature sensor specifications:

Output resolution: 0.003 V
Accuracy: ±0.5°C
Programmable range limits: -40 to 120 °C
Response time: ≤30 s in still air

Humidity sensor specifications:

Output resolution: 0.015 V
Accuracy: ±3%
Programmable range limits: 0 to 100 %
Response time: ≤8 s in still air

Process connection: ½" NPT thread

Pressure rating: 0 to 10 bar (0 to 145 PSI)

Ingress protection class: IP65 (transmitter)

Sensor rated: IP40

Operating temperature: -10 to 65 °C

Operating humidity: 0 to 95 %RH

Cable entrance: Compress fitting PG7
