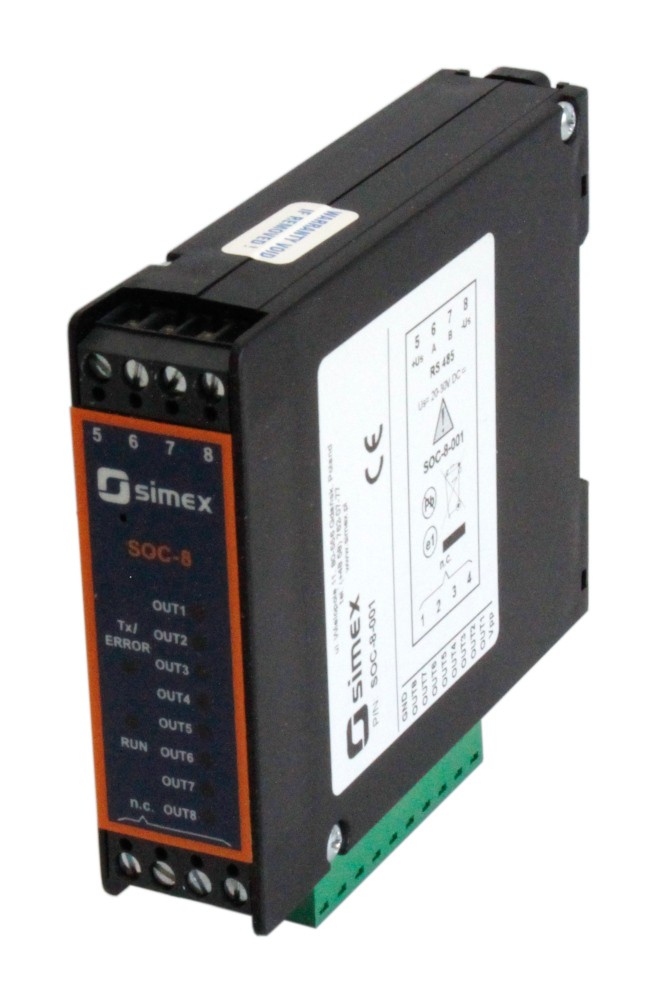

Simex SOC8 Digital Output Modbus RTU module

In stock (8 items available)
  • Weight
    0.15 kg
  • SKU
    SID-002

Simex SOC-8 allows 8 binary outputs  to be monitored and controlled via the Modbus RTU RS-485 connection.

Buy more for less:
Quantity ex GST incl GST Saving
1-4 items $142.50 / each N/A
5-9 items $128.25 / each N/A save 10%
10 or more items $121.12 / each N/A save 15%
  • $142.50
Qty:

The SOC-8 binary outputs module is used to control the low-power output devices via the RS-485 connection. It finds application in distributed control and visualization systems. It can directly control, for example, contactors, relays, light bulbs and other DC loads with the 24V control (supply) voltage and the 0,5A current (maximum). Galvanic separation of all outputs ensures safe operation of the master system, without the risk of damage caused by dangerous overvoltage.

Features

  • 8 independent open collector outputs
  • RS-485 / Modbus RTU
  • LED indicators for communication and status.

Specifications

  • Outputs: 8 binary
  • Max output current: 0.5A / single output, max. 2 active outputs; 0.2A / single output, all outputs active
  • Power supply: typ. 24V DC (16V DC to 30V DC)
  • Operating temperature: 0°C to +50°C (standard), -20°C to +50°C (option)
  • Protection class: IP 20 (housing and connection clips)
  • Input levels: LOW state: 0V; HIGH state: 24V (min. 8V)
  • Communication interface: RS-485 / Modbus RTU
  • Breakdown voltage: all 8 outputs are galvanically isolated from module supply and RS-485 interface
  • Data memory: non-volatile memory, EEPROM type
  • Humidity: max. 90%, non-condensing
  • Storage temperature: -10°C to +70°C or -20°C to +70°C (with option 08)
  • Case dimensions: 101 x 22,5 x 80 mm
  • Mounting: on the 35 mm strip
  • External fuse: T - type, max. 1 A (required)
  • Number of modules in 1 network     max.: 128.
  • Manufacturer PartNo. SOC-8-001
