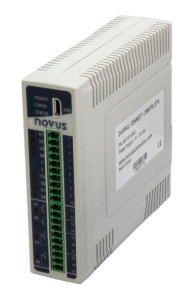

Novus DigiRail Connect DMIX Ethernet and RS485 IO Module (8DI,4RO)

Novus DigiRail Connect DMIX Ethernet and RS485 IO Module (8DI,4RO)

SKU: SIG-126

The Novus DigiRail Connect DMIX features both a Modbus TCP and Modbus RTU communications and has 8 digital input and counter (32bit) and 4 Relay out. Counts are stored in non-volatile memory so they are not lost after power failure.

  • Manufacturer: Novus
Buy more for less:
1-4items$278.36/ each
5-9items$250.52/ eachsave10%
10or more items$236.60/ eachsave15%
  • $278.36
In stock(2 items available)

DigiRail DMIX Connect is a versatile I/O module to be used as an extension of any brand automation system. Its rich mixed inputs and outputs offer industrial standard digital signaling. The available DigiRail Connect options ensure the choice of suitable configuration for the customer application.

Bringing the Industry 4.0 to the rail level, the connectivity of DigiRail connect allows it to be used as slave Modbus RTU device in RS485 networks or as a server Modbus TCP device under Ethernet network.

The Digirail Connect also can be used as a Modbus TCP to Modbus RTU gateway

Specially designed for harsh environments, DigiRail Connect complies with the main EMC and EMI standards, providing robustness and reliability for industrial applications.


  • Inputs: 8 digital
  • Outputs: 4 Relay
  • Counters: 8 x 32 Bit Counters Non volatile
  • USB port
  • Modbus TCP communications
  • Modbus RTU communications
  • Modbus TCP - Modbus RTU gateway

Power supply: 10 Vdc to 36 Vdc

Maximum Power Consumption: 5 W

Typical Consumption: 20 mA

Inputs: 8 digital

Outputs:  4 Relay

Digital Input characteristics:

  • Logical level 0:
  • Logical level 1: > 3 V
  • Maximum voltage: 30 V
  • Input impedance: 270 kΩ
  • Input current: At 30 Vdc (typical) 0.15 mA

Maximum frequency (square wave):

  • Dry contact: 10 Hz
  • PNP: 250 Hz
  • NPN: 250 kHz

Relay Output characteristics:

  • Maximum load current: 3 A (SPST) / 6 A (SPDT) 00 mA

Communication interface:

  • USB
  • CAN
  • Ethernet: 10/100 Mbps
  • IEEE standard 802.3u
  • RS485

Software: NXperience (via USB)

Operating Temperature: -20 to 60°C (-4 to 140°F)

Operating Humidity: 5 to 95% RH, non-condensing

Enclosure: ABS+PC

    • SKU
    • Weight
      0.1 kg
    • Dimensions (L x W x H)
      10 x 8 x 10 cm
