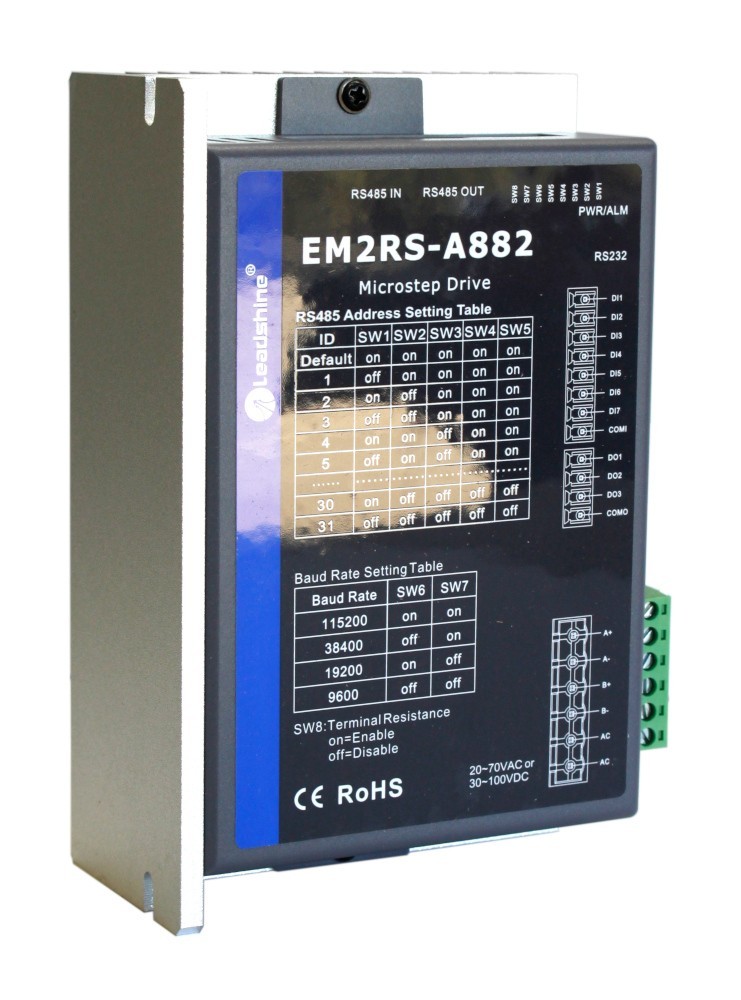

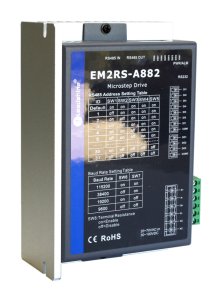

EM2RS-A882, 8.2 A, MODBUS Control Open-Loop Stepper Driver

EM2RS-A882, 8.2 A, MODBUS Control Open-Loop Stepper Driver

SKU: SMC-028

The EM2RS-A882 is a Modbus (RS485) control open loop stepper driver, able to power 2 phase stepper motors smoothly with very low motor heating & noise. It can provide up to  8.2A, operating at 30-110VDC.

Leadshine
  • Manufacturer: Leadshine
Buy more for less:
1-4items$112.52/ each
5-9items$101.26/ eachsave10%
10or more items$95.64/ eachsave15%
  • $112.52
Qty:
In stock(3 items available)

EM2RS Series are stepper drive based on standard Modbus RTU protocol, using RS485 communication can network up to 31 axes. They built-in PR feature with 16-segment position table (PR Mode) can save additional controllers in most of point-to-point applications, to greatly enhance system reliability and reduce the cost. EM2RS Series also support the feature of teaching, the operation modes of Profile Position, Profile Velocity and Homing. EM2RS-A882 can power 2-phase NEMA 24, 34 stepper motors.

The EM2RS series is highly reliable and affordable and performs excellently in many industrial applications such as solar equipment, textile, civil, robotics, power generation equipment, 3C, packaging...

Features:

  • Standard Isolated RS485 Modbus
  • HMI, PLC or External I/O start motion
  • 7 Programmable Inputs: Limit, Origin, Quick stop, Alarm reset, Enable, JOG or Position Table inputs
  • 3 Programmable Outputs: Alarm, Brake, Homing / Instruction / Path complete
  • Modes of Operation: Velocity, Position, Homing
  • Support Functions: Teaching, Interrupt, Skip, Suspend, Circulate motion
  • ● Over voltage, over current, motor cable error, etc. protections
    • SKU
      SMC-028
    • Weight
      0.25 kg
    • Dimensions (L x W x H)
      16 x 11 x 6 cm

Input voltage: 20-80VAC or 30-110VDC

Output current: 2.1-8.2A

Communication Type: RS232 for tuning, RS485 for networking control

# of Digital Inputs: 7

Digital Inputs: Limit switch signal, original signal, quick stop, alarm reset, and position table inputs

# of Digital Outputs: 3

Digital Outputs: Fault output, brake output, and motion complete output

Operation Mode: PP, PV, HM

Protection: Over current; over voltage; chip error; motor cable error; ROM error; auto-tuning error

Input Frequency: 10KHz (Max)

Logical Voltage:  12-24VDC

Operating environment:

  • Environment: Avoid dust, oil fog and corrosive gases
  • Storage temperature: -20 to 65°C
  • Ambient temperature: 0 to 50°C
  • Humidity: 40% to 90% RH
  • Operating temperature: 0-50°C Max
  • Vibration: 10-55Hz/0.15mm
  • Mount: Vertical or horizontal mounting

Weight: 580 g

Dimension: 151*91*53mm
