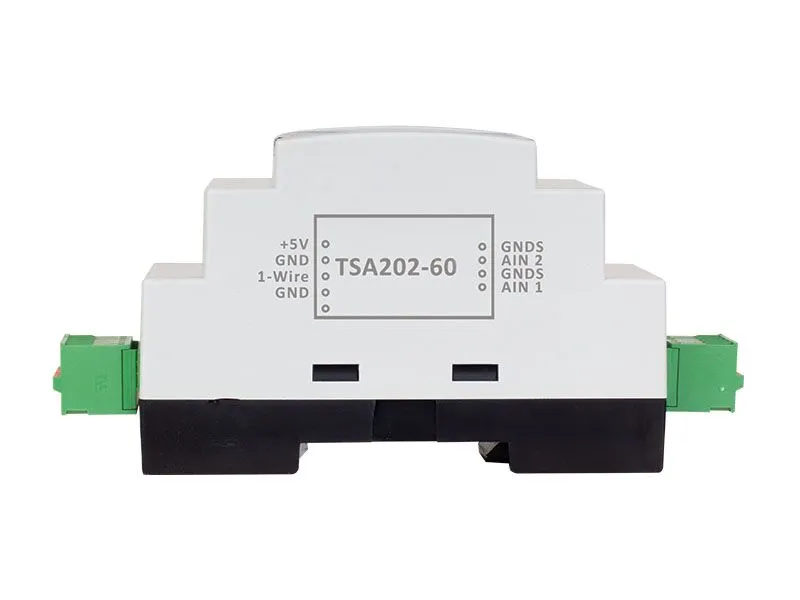

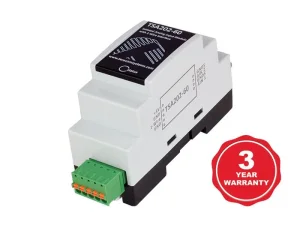

TSA202-60 60V Input Module
TSA202-60 is a 1-Wire 60V input module with 2 analog inputs.
Description
60V input module TSA202-60 is engineered for accurate high-voltage measurement in industrial and automation systems. It operates over the 1-Wire digital protocol, allowing easy integration into distributed sensor networks. Additionally, its analog inputs are galvanically isolated from the interface, which protects against ground loops and electrical noise while maintaining signal integrity.
With a measurement range of 0 to 60V, the TSA202-60 is ideal for applications such as monitoring battery banks, solar panels, and industrial control circuits. As a result, it delivers stable performance in demanding environments where reliability is essential
TSA202-60 supports precise monitoring of DC voltage levels across various systems. Raw input values can be easily scaled to engineering units by applying an offset and multiplier within the master controller, enabling flexible data interpretation. Moreover, this allows the module to adapt to different sensor types and application requirements.
Features
- Functional isolation between the analog inputs and the 1-Wire interface for improved safety and signal integrity;
- LED indicator for communication status;
- Wide input voltage range up to 60V for direct connection to high-voltage sources;
- Firmware updates via the 1-Wire interface.
Specifications
| Physical Characteristics |
|
| Environmental limits |
|
| Power Supply |
|
| Inputs |
|
| Accuracy/Resolution |
|
| Isolation |
|
