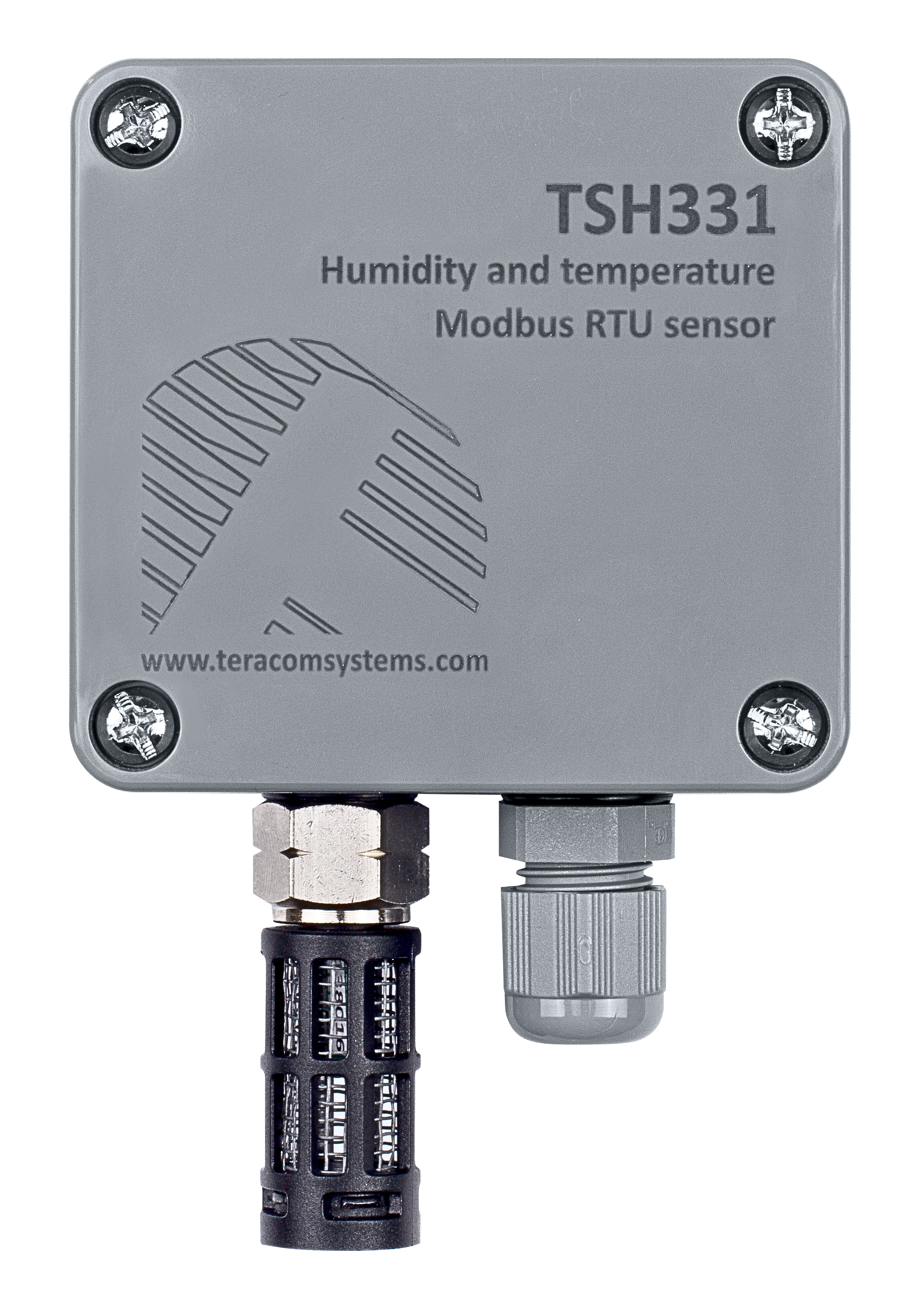

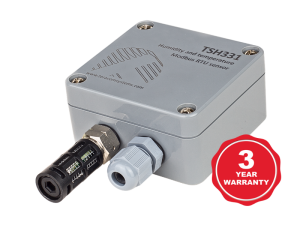

TSH331 IP54 Modbus RTU temperature and humidity sensor
TSH331 is an IP54 temperature and humidity sensor with a Modbus RTU interface. Suitable for use with Teracom controllers and PLC's. -20 to 60 °C range with ±0.4 °C accuracy from -10 to 60 °C.
TSH331 is an IP54 temperature and humidity sensor with a Modbus RTU interface. A unique capacitive element is used for measuring relative humidity while the temperature is measured by a bandgap element. Both elements are seamlessly coupled to a 12-bit analog to digital converter, which results in superior measurement quality. Used with one of Teracom Ethernet or cellular controllers, TSH331 is an ideal choice for humidity monitoring in applications that require IP54 protection.
TSH331 communicates Modbus RTUover a RS485 bus. A different Modbus address can be set on each sensor, which allows multi-sensor support over the same bus.
Controllers Compatible with TSH331
- Energy monitoring module TCW260
- Temperature and humidity data logger TCW210-TH
- 4G Controller and IO module TCG140
- Power Supply: 4.5 to 26 VDC
- Temperature range: –20°C to +60°C
- Temp Accuracy(min): ±0.4 (-10 to +60°C)
- Temp Accuracy(max): ±0.6 (-20 to +60°C)
- Humidity range: 10% to 90%RH(non-condensing)
- Humidity Accuracy(min): ±3% (in 20 to85% RH range)
- Humidity Accuracy(max): ±5% (in 5% to 95% RH range)
- Ingress protection: IP54
- Head dimensions: : 65.6 x 99 x 36 mm
- Warranty: 3 years
