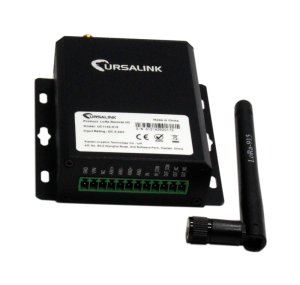

Ursalink UC1122 LoRa Remote I/O

Ursalink UC1122 LoRa Remote I/O

SKU: ULC-006

Featuring 2 analog inputs and 1 alarm input & relay output, UC1122 supports standard LoRaWAN class C protocol, which is perfectly used as a remote data logger or a remote I/O controller. Coupled with Ursalink UG87 LoRaWAN gateway, UC1122 enables users to fastly build up a LoRa-Baesd IoT solution for data collection, remote control and monitoring of field devices.

Milesight
  • Manufacturer: Milesight
Buy more for less:
1-4items$111.44/ each
5-9items$100.30/ eachsave10%
10or more items$94.72/ eachsave15%
  • $111.44
Qty:
In stock(14 items available)

Ursalink UC1122 is designed as a cost-effective industrial machine monitoring device that monitors and controls up to 1 DC signal, 1 drivable relay output and 2 analog inputs. With the aid of Ursalink UC1122, the alarm condition brings attention to engineering personnel immediately. The output can be connected with an alarm indication device, such as a light or horn. The module can give immediate response to the status of both the input and output conditions. A LoRa module is embedded in the Ursalink UC1122.

  • 1 relay drivable output and 1 digital input connected with 1 DC signal
  • 2 analog inputs for data acquisition
  • Support for 4–20 mA analog devices
  • Analog to digital conversion
  • Customizable conditions & programmable actions
  • Send uplink alert messages according to user-defined conditions
  • Automatic switching of field devices at set times
  • Complies with the LoRaWAN Class C protocol
  • Supports star network and mesh network
  • High Rx sensitivity and adjustable Tx power
  • Cellular Interface Connector: 50 Ω SMA Antenna Interface (Center PIN: SMA Female)
  • Configuration Interface Baud Rate: 9600 bps / 57600bps / 115200bps
  • IO Digital Inputs: 2 x Opto-isolated Digital Inputs, 3-24 VDC Voltage
  • IO Digital Outputs: 1 x SPDT Relay Contact Rating: 3 amp DC (Max: 30 V) or 3 amp AC (Max: 250 V)
  • Power Supply: 5-24 VDC (Standard adapter: DC 12 V/0.5 A)
  • Ingress Protection: IP30
  • Dimensions: 79 x 60 x 24 mm (3.11 x 2.36 x 0.94 in)
  • LED Indicators: 1 × Status, 1 × ACT
  • Operating Temperature: -40°C to +70°C Note-Reduced Cellular Performance Above 60°C
  • Relative Humidity: 0% to 95% (non-condensing) at 25°
    • SKU
      ULC-006
    • Weight
      1.5 kg
    • Dimensions (L x W x H)
      24 x 17 x 5 cm
