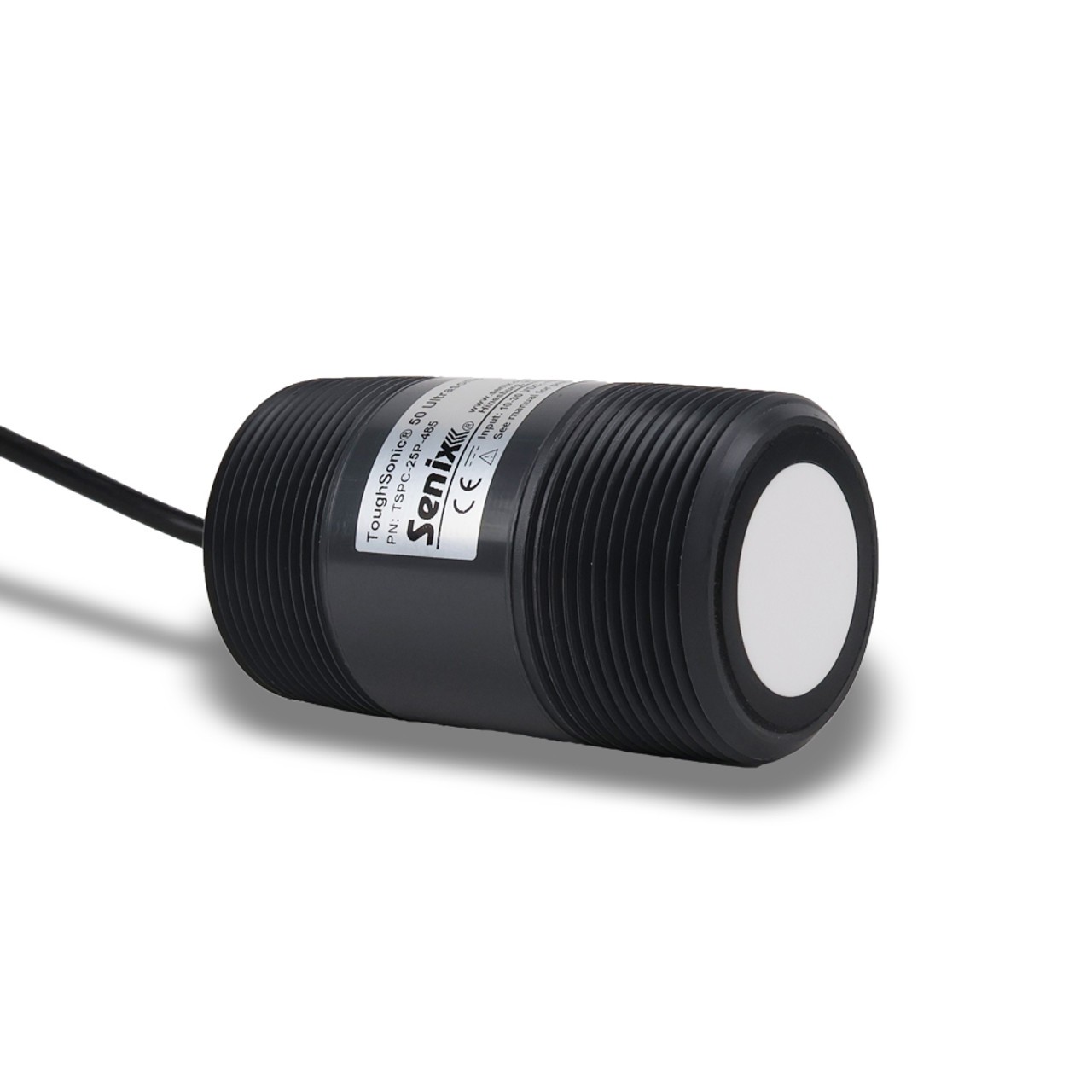

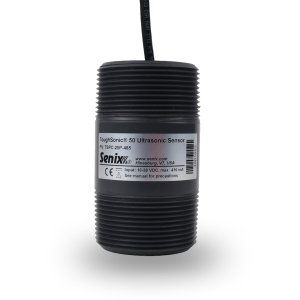

ToughSonic 100 50' - 15.2 Meter Ultrasonic Sensor (RS-485) with PVDF Plastic Housing

ToughSonic 100 50' - 15.2 Meter Ultrasonic Sensor (RS-485) with PVDF Plastic Housing

SKU: SNS-037

The ToughSonic 100 50' Range, 2.5" NPT front and rear threads ultrasonic sensor, TS-100.50F1X.xx7FA, measures level and distance through the air using ultrasonic sound waves up to a distance of 50 feet (15.2 Meters).

These rugged, compact ultrasonic sensors live up to the “ToughSonic” name. Versatile liquid level sensors feature heavy-duty electronics that are epoxy-potted into PVDF Plastic housings.


*TS-100.50D1X.0xxFA... (2.5" NPT front and rear threads, RS-485 Standard)

**Standard includes Analog (4- 20mA & 0- 10V or 0- 5V) Outputs, Switch Outputs, and Output Indicator.

Senix
  • Manufacturer: Senix
Buy more for less:
1-4items$926.90/ each
5-9items$834.21/ eachsave10%
10or more items$787.86/ eachsave15%
  • $926.90
Qty:
Available for backorder

The TS-100 features permanently attached cables and rugged piezoelectric transducers. Use the TS-100 to monitor & control water and benign liquid levels, measure distances, or detect objects.

Versatile Measurement Capabilities: Accurately measure distances, detect objects, and monitor water and benign liquid levels.
Robust Construction: Built to withstand harsh conditions, making them ideal for both indoor and outdoor use.
Wide Operating Temperature Range: Functions effectively in temperatures from -40 to +70°C.
High Ingress Protection: Rated IP68, NEMA-4X, and NEMA-6P for superior resistance against dust and water ingress.
User-Friendly Adjustments: Easily configure settings with the included SensorView software for setup, testing, and cloning sensors.

Advanced Features of TS-100 Ultrasonic Sensors

Extended Range, Minimal Dead Zone: Achieve precise distance measurements with a long-range capability and a short dead band.
Reliable in Any Environment: Unaffected by optical factors such as color, transparency, or lighting conditions.
Easy Setup & Calibration: Configure effortlessly via PC or onboard button for quick deployment.
Adjustable Sensitivity: Fine-tune detection for precise performance.
Built-in Temperature Compensation: Ensures accurate readings across a wide range of fluctuating temperatures.

Benefits of this Easy-to-Use Ultrasonic Sensor

Fast & Simple Installation: Mount with ease for quick deployment in any application.
Rugged, Sealed Housing: Designed for wet, dirty, and harsh environments.
Reliable I/O Protection: Features short-circuit and overload protection for enhanced durability.
Multi-Sensor Synchronization: Operate multiple sensors without interference.
Non-Contact: Accurately measure levels and distances without touching the material being measured.

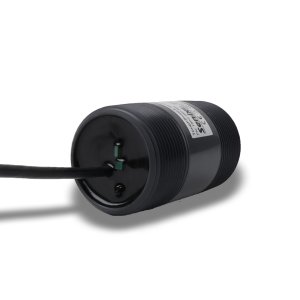

Rear Status Indicators: Easily monitor sensor operation and diagnostics, or reset default setup using a rear push-button (N/A on TS-100.50), or the push-button can be disabled.

Common Applications for TS-100 General-Purpose Sensors

Tank Level Measurement: Accurately monitor liquid levels in tanks containing benign fluids.
Open Channel Flow Monitoring: Ideal for flow measurement in flumes, weirs, and open channels.
Roll Diameter Measurement: Precisely gauge material roll diameters for manufacturing and processing.
Loop Control & Slack Detection: Maintain optimal material tension in production lines.
Object Detection & Presence Sensing: Verify object presence or absence in designated areas.
Relative Positioning: Measure an object’s position relative to a fixed reference point for automation and alignment.

Maximum Range

50 feet (15.2 meters)

Optimum Range

33 ft (10 m)

Deadband

0-12 in (0-303 mm)

Temperature

-40° to 158°F (-40° to 70°C)

Humidity

0 to 100% operating

Protection

NEMA-4X, NEMA 6P, IP68

Transducer

Ruggedized piezoelectric

Compensation

Temperature compensated (selectable in SensorView™)

Resolution

Serial data: 0.0135 in. (0.3438 mm)
 Analog steps: 4099 (0-10 VDC),
 3279 (4-20 mA)

Repeatability

Nominal 0.2% of range @ constant temp.
 Affected by target, distance, environment

Update Rate

5 Hz (200 ms), SensorView adjustable; affected by SensorView filter selections


Outputs

Output #1

Current sourcing 4-20 mA or SensorView adjustable, max. loop 450Ω

Output #2

Current sinking 4-20 mA or SensorView adjustable, max. loop 450Ω

Voltage Output

0-10, 0-5 VDC or SensorView customized
 10 mA maximum

4-20 mA
 Current Loop


Switch Output(s)

150 mA max. @ 40 VDC max.,
 SensorView selected as sinking (NPN) or sourcing (PNP)
 Each with adjustable set point, polarity, hysteresis & time delays

RS-232 or RS-485

Modbus & streaming protocols
 9600-115200 baud (selectable)
 8 data bits, 1 stop, no parity
 Model number determines interface

Sync Feature

Permits up to 32 sensors to operate in close proximity without interference
 Not usable with serial data only models


Mechanical

Housing

316 stainless steel

Mounting
 (30 mm)


Mounting
 (1-in NPT)

2.3 inch clamp, 1.5 inch NPT or 2.5 inch NPT

Attached Cable

6.5 feet (2 meters)
 Custom lengths available

Total Weight

22.6 oz. (0.64 kg)

*Specifications are subject to change without notice.
