Brushless Servo Motor - 750W
● Rated voltage 48V, rated power 750W
● Frame 80mm, rated torque 2.39N·m, rated speed 3000r/min
● With brake
● Insulation class: Class F
● 17 bit multi-turn absolute magnetic encoder
● IP65
The ELVM8075V48EH-M17-HD is a 750W brushless servo motor with 17-bit magnetic encoder, 3,000 RPM rated continuous speed and 3,900 RPM Peak and IP65 protection. It is suited for use with ELD2 driver.

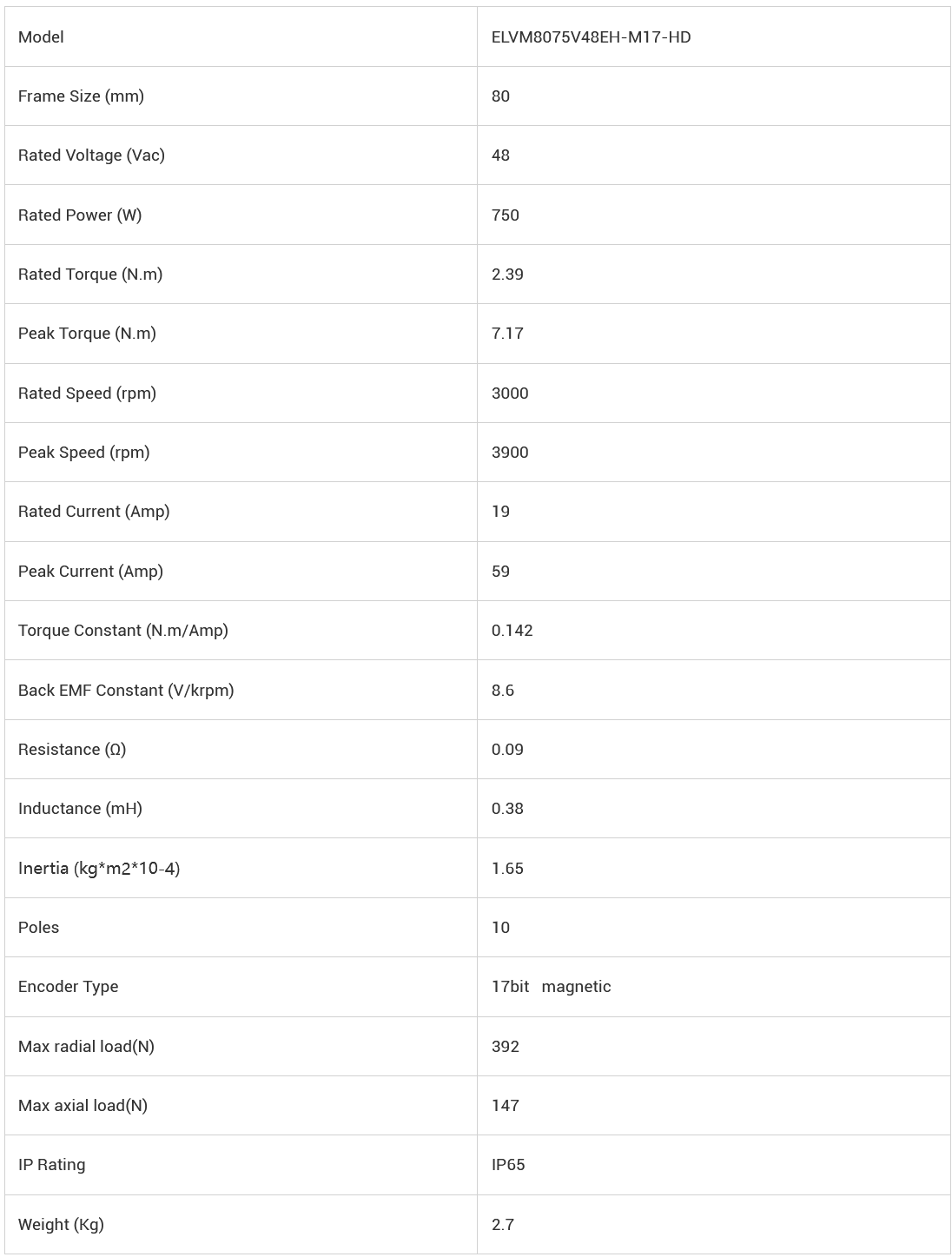

The suitable driver for this will be the SMC-412. Power and encoder extension cables; 1.5m long are available between the motor and drive. See 'Specification' for details on required cables.
Features:
● Rated voltage 48V, rated power 750W
● Frame 80mm, rated torque 2.39N·m, rated speed 3000r/min
● With brake
● Insulation class: Class F
● 17 bit multi-turn absolute magnetic encoder
● IP65
