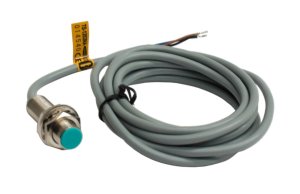

TS-1202NA Tubular Proximity Switch with NPN Output

TS-1202NA Tubular Proximity Switch with NPN Output

SKU: COS-0120

M12 3 wire inductive proximity sensor. 2 mm secure sensing distance. NPN output.

Conch
  • Manufacturer: Conch
Buy more for less:
1-4items$27.17/ each
5-9items$24.46/ eachsave10%
10or more items$23.10/ eachsave15%
  • $27.17
Qty:
In stock(4 items available)

Inductive proximity sensors switch in the presence of metallic objects. These sensors take 10 to 30 V DC and have a normally open NPN-type output. The rear of the sensor has an LED indicator that lights when the sensor is triggered. They are fully sealed and make excellent limit switches for CNC machines.

The sensor has a 12 mm diameter threaded body, allowing easy mounting and adjustment. 2 mm sensing distance.

  • Manufacturer Part No: Conch TS-1202NA
  • Rated operational voltage: 24 VDC
  • Supply voltage:10 to 30 VDC
  • Voltage drop: ≤ 1.5 V
  • Load current capacity:150 mA
  • Off-state current: ≤ 10 mA
  • Detection distance: 2 mm ± 10 %
  • Hysteresis:15 %
  • Secure sensing distance: 0 to 1.6 mm
  • Protection: Reverse polarity
  • Ambient temperature range: -20 to 70 °C
  • Maximum frequency: 1 kHz
  • Function indication: Red LED
  • IP rating: IP67
  • Housing material: Nickle plated brass
  • Material of sensing face: POM
  • Connection: Bare wire
  • No. of wires × gauge: 3 × 0.16 mm
  • Cable Length: 2 m
  • Dimensions:12 mm diameter, 40 mm long
    • SKU
      COS-0120
    • Weight
      0.11 kg
    • Dimensions (L x W x H)
      9 x 9 x 3 cm
