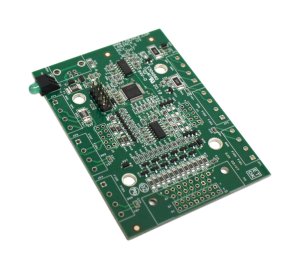

LabJack U3-HV USB Data Acquisition OEM Board

LabJack U3-HV USB Data Acquisition OEM Board

SKU: LAJ-025

OEM version of the Labjack U3-HV. Most through-hole components (USB and DB15 connector, screw terminals etc) are not installed, making the U3-OEM very flexible. See the U3 User's Guide for more information. Ships with the board only. All documentation, drivers, and examples are available online. DAQFactory Express is not included.

LabJack
  • Manufacturer: LabJack
Buy more for less:
1-4items$145.70/ each
5or more items$138.42/ eachsave5%
  • $145.70
Qty:
In stock(2 items available)

OEM version of the Labjack U3-HV. Most through-hole components (USB and DB15 connector, screw terminals etc) are not installed, making the U3-OEM very flexible. See the U3 User's Guide for more information. Ships with the board only. All documentation, drivers, and examples are available online. DAQFactory Express is not included.

The LabJack modules come with Windows software that allows you to be quickly up and logging and graphing data.

Flexible I/O:

The 12 flexible I/O lines (FIO and EIO ports) on the LabJack U3-HV can be individually configured as digital input, digital output, or analog input. In addition, up to 2 of these lines can be configured as timers, and up to 2 of these lines can be configured as counters.

The first 4 flexible I/O lines (FIO4-FIO7) appear on built-in screw terminals. The other 8 flexible I/O lines (EIO0-EIO7) are available on the DB-15 connector on the base fo the unit. The optional CB15 board breaks these out to screw terminals.

Analog inputs:

The LabJack U3 has up to 16 analog inputs available on the flexible I/O lines. Single-ended measurements can be taken of any line compared to ground, or differential measurements can be taken of any line to any other line.

Analog input resolution is 12 bits. The range of single-ended low-voltage analog inputs on the U3-LV is typically 0 to 2.4 V or 0 to 3.6 V, and the range of differential analog inputs is typically ±2.4 V (pseudobipolar only). For valid measurements, the voltage on every flexible I/O pin, with respect to ground, must be within -0.3 to +3.6 V.

On the U3-HV, the first 4 flexible I/O of the U3-LV (FIO0-FIO3) have been replaced with dedicated high-voltage analog inputs. The input range of these channels is ±10 volts or -10 to +20 volts. The remaining 12 flexible I/O are still available as described above, so the U3-HV has 4 high-voltage analog inputs and up to 12 low-voltage analog inputs.

Command/response (software timed) analog input reads typically take 0.6 to 4.0 ms depending on number of channels and communication configuration. Hardware timed input streaming has a maximum rate that varies with resolution from 2.5 ksamples/s at 12-bits to 50 ksamples/s at about 10-bits.

Analog outputs:

The LabJack U3 has 2 analog outputs (DAC0 and DAC1) that are available on the screw terminals. Each analog output can be set to a voltage between 0 and 5 V with 10-bits of resolution.

The analog outputs are updated in command/response mode, with a typical update time of 0.6 to 4.0 ms depending on communication configuration. The analog outputs have filters with a 3 dB cutoff around 16 Hz, limiting the frequency of output waveforms to less than that.

Digital I/O:

The LabJack U3-HV has up to 16 digital I/O channels. 12 are available from the flexible I/O lines, and 4 dedicated digital I/O (CIO0-CIO3) are available on the DB15 connector. Each digital line can be individually configured as input, output-high, or output-low. The digital I/O use 3.3 volt logic and are 5 V tolerant.

Command/response (software timed) reads/writes typically take 0.6 to 4.0 ms depending on communication configuration. The first 16 digital inputs can also be read in a hardware timed input stream where all 16 inputs count as a single stream channel.

Timers:

Up to 2 flexible I/O lines can be configured as timers. The timers are very flexible, providing options such as PWM output, pulse/period timing, pulse counting, and quadrature input.

Counters:

Up to 2 flexible I/O lines can be configured as 32-bit counters.

I/O Protection:

All I/O lines on the U3 are protected against minor over voltages. The FIO lines can withstand continuous voltages of up to ±10 V, while the EIO/CIO lines withstand continuous voltages of up to ±6 V.

High channel count applications:

By using USB hubs, many LabJacks can be interfaced to a single PC, providing an inexpensive solution for high channel count applications.

Digital/Analog I/O: 12  can each be configured for:

  • Digital Input, 3.3 or 5 VDC logic level compatible
  • Digital Output, 3.3 VDC
  • Analog Input, 0 to 2.44 VDC or 0 to 3.6 VDC
  • 4 HV analog inputs capable of measuring -10 to 20 VDC
  • Up to 2 Timers (Pulse Timing, PWM Output, Quadrature Input etc.)
  • Up to 2 Counters (32 bits Each)

Additional Digital I/O: 4

  • Total of 16 analog inputs with 12 bit (4096 level) conversion

Analog Outputs: 2 (10 bit, 0 to 5 VDC)

Supports: SPI, I2C, and Asynchronous Serial Protocols (Master Only). Also Software or Hardware Timed Acquisition

Maximum Input Stream Rate: 2.5 to 50 kHz (Depending on Resolution)

Response Time: Less Than 1 Millisecond

Interface: USB 2.0/1.1 Full Speed

Powered: by USB Cable

Drivers: Available for Windows, Linux, Mac and Pocket PC

Rated for Industrial Temperature Range: -40 to 85 °C

Built-In Screw Terminals for Some Signals

Examples: Available for C/C++, VB, LabVIEW, Java, and More

    • SKU
      LAJ-025
    • Weight
      0.03 kg
    • Dimensions (L x W x H)
      11 x 9 x 3 cm
