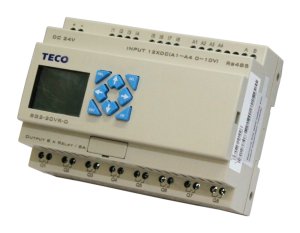

TECO SG2 V3 Programmable Logic Relay SG2-20VR-D
TECO SG2 Series PLR V.3, 24 VDC Powered, 8 DC Inputs, 4 Analog Inputs 8 Relay Outputs, Keypad / Display and Built-in MODBUS RTU I/O Link.
The SG2 Series from Teco Westinghouse offers the price of a programmable relay with the capability of a small PLC. With 24VDC Powered, 8 DC Inputs, 4 Analog Inputs, 8 Relay Outputs expandable up to 44 I/O, this intelligent relay will control almost all discrete systems. The SG2-20VR-D comes with a built-in RS485 Modbus RTU port. Operates in Master/Slave mode, 4800 to 115.2kb baudrate and supports Modbus Functions 1,3,5,6 and 16. The SG2-20VR-D features a 4x16 character LCD screen and keypad for operator feedback and control.
The programming software SG2 Client runs on Windows and is freely available for download. Programming can be in either Ladder Logic or Function Block. A programming cable SKU part number TEC-200 is required.
Do you have an application for one of our PLCs but don't know how to program in Ladder Logic? We can program it for you. Email us your requirements and we will provide a quote to do the programming.
- Power Supply: 20.4~28.8 VDC 150mA
- Digital Inputs: Twelve Inputs, OFF <5VDC, ON>15VDC
- Digital Outputs: 8 relay outputs
- Output Rating: 265VAC / 30VDC Relay Outputs, 8A Resistive Load
- Analog Inputs: Four 0-10VDC 10bit resolution
- Analog Inputs Isolation: None
- LCD Display: 4 line, 16 character
- Keypad: 8 Programming Keys
- Program Memory: 300 Lines or 260 Function Blocks
- Program Storage: Retentive Flash Memory
- Real Time Clock: Built In - Daylight Saving Feature
- Timers: 31 (0.01Sec ~ 9999 min)
- Approvals: UL / cUL / CE
- Warranty: 1 Year
