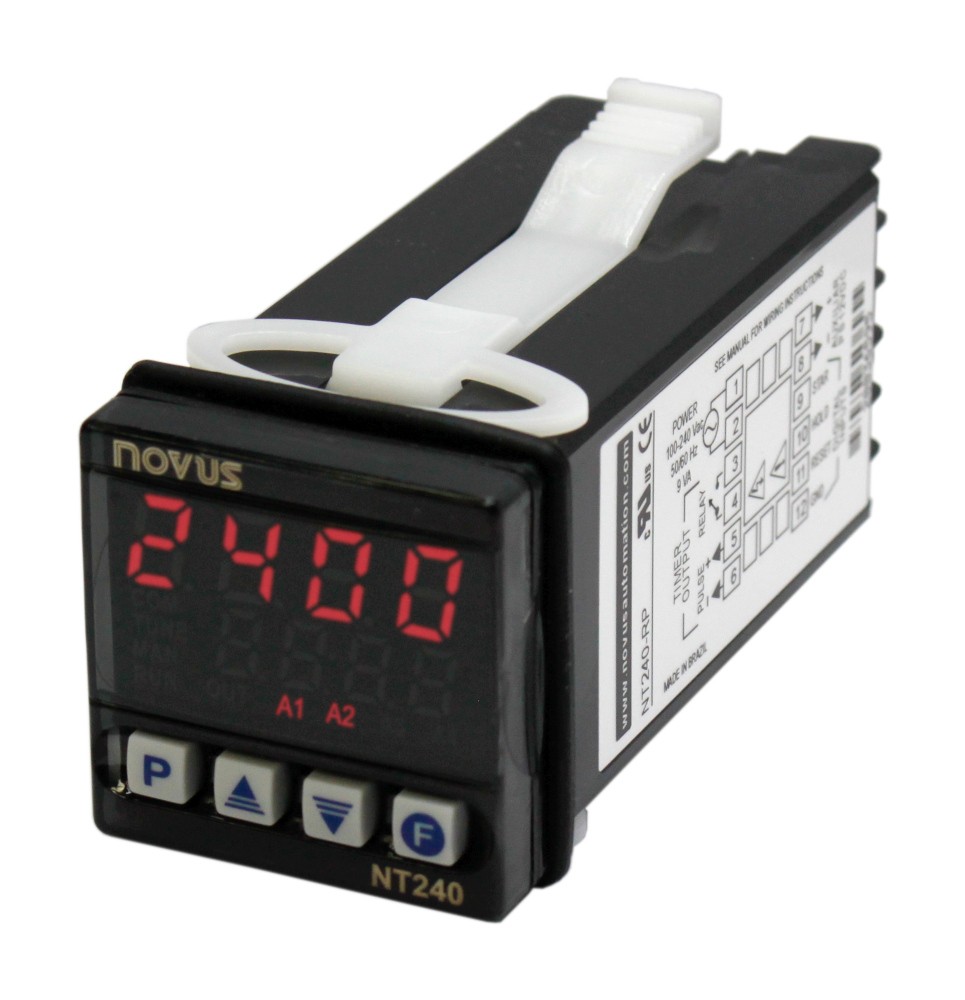

Programmable Timer 240VAC Powered
Programmable Timer 240VAC Powered.
Features Include
Input types:NPN/PNP, dry contact and voltage pulse.
Output type: 3A @ 250Vac relay or 5vdc voltage pulse.
Display: high efficiency10mm LED.
Switching power supply: 85-264Vac. (option 12-24Vdc/ac)
Dimensions: 48x48mm x 100mm.
Up and down counting.
Eleven different timer modes. One mode is user defined.
Three digital inputs for special functions.
Frontal key to execute one pre-programmed special function.
Programmable time range from 0.01 second to 9999 hours.
With a 4 digit display, this timer offers a relay output to be switched at pre-programmed intervals according to eleven different timing functions. The LED display shows the running time and the digital inputs execute start, hold and reset funstions. Dimensions: 48x48mm x 100mm (1/16 DIN).
Features Include
Input types:NPN/PNP, dry contact and voltage pulse.
Output type: 3A @ 250Vac relay or 5vdc voltage pulse.
Display: high efficiency10mm LED.
Switching power supply: 85-264Vac. (option 12-24Vdc/ac)
Dimensions: 48x48mm x 100mm.
Up and down counting.
Eleven different timer modes. One mode is user defined.
Three digital inputs for special functions.
Frontal key to execute one pre-programmed special function.
Programmable time range from 0.01 second to 9999 hours.
