N323-PT100-485 Thermostat Controller with PT100 Sensor and RS-485, 230Â VAC
Panel mount thermostat with PT100 sensor input and Modbus RTU comms. Configurable for a huge range of heating and cooling applications. 230 VAC powered.

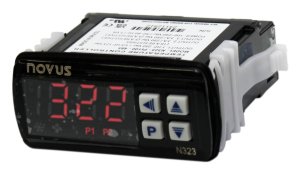

The Novus N323 Thermostat is a budget priced On-Off temperature controller with industrial level reliability. This model accepts a PT100 RTD sensor and has an RS-485 Modbus communication interface and is powered from 230VAC.
The N323 thermostats have three relay outputs which can be configured for heating or cooling or a number of different alarm modes and are easily configured by the front panel buttons and display.
The temperature and status of relays are shown on the LED Display. Great for aquariums, home brewing, ovens, fridges, greenhouses and many other applications.
RS-485 Modbus communications allows the temperature, output status and all configuration variables to be accessed from a PLC, computer or building management system.
Features:
- IP65 when mounted in panel
- Fully configurable
- Heating or cooling actions
- Configurable hysteresis
- Configurable start-up delay to reduce inrush current when using multiple controllers
- Configurable minimum on and off times to extend compressor or heater life
- Over /under temperature and in-bound / out-of-band alarms
- Optional multi-level password protection
- RS-485 Modbus RTU communication interface
- Power Supply: 100 to 240VAC or VDC ±10%, 50 to 60Hz
- Power Consumption:Â 5VA
- Protocol:Â Modbus RTU via RS485
- Operating Temperature: 0 to 40°C
- 1 x Sensor Input:

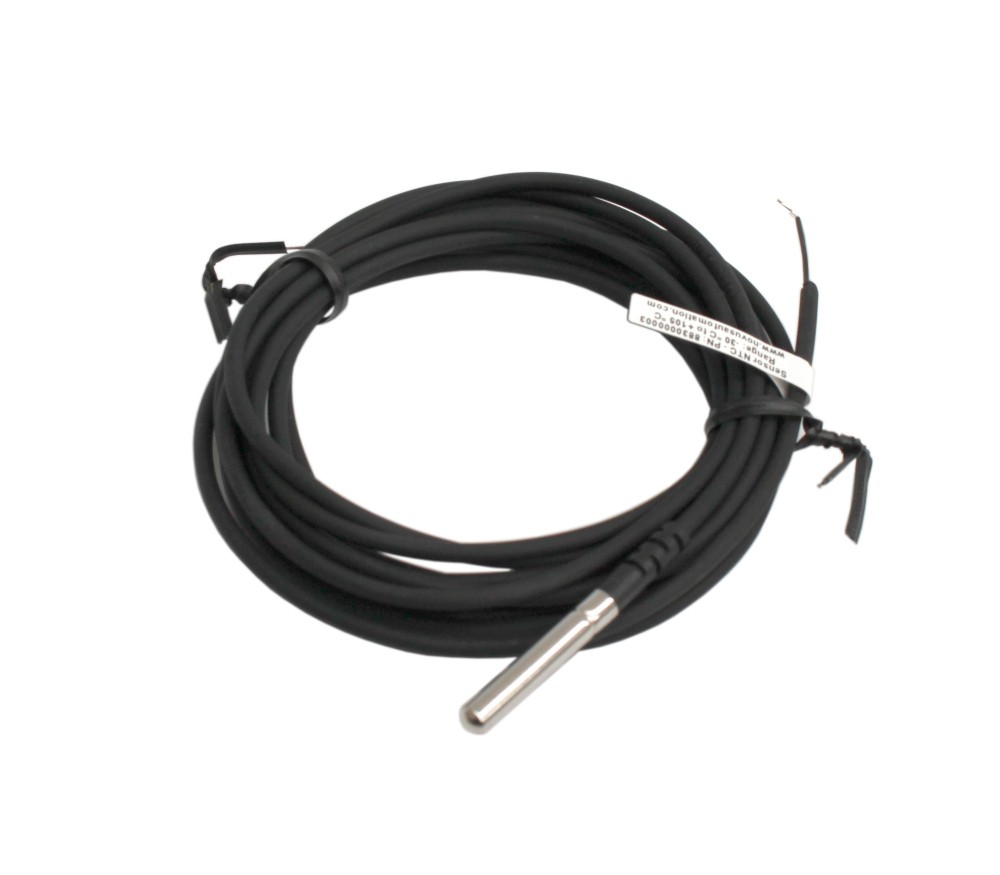

- Type: PT100 sensors (not included)
- Range: -50 °C to 300 °C
- Accuracy: 0.7°C
- Resolution: 0.1ºC (from –19.9 to 119.9ºC); 1ºC (elsewhere)
- 1 x SPDT Relay Output:Â 1HP 250VAC / 1/3HP 125VAC (16A resistive)
- 2 x SPST Relay Outputs:Â 3A (resistive), 250VAC
- Case Protection:
- Front panel: IP65
- Box:Â IP42 with Polycarbonate material, UL94-2
- Panel Cut-Out:Â 70 x 29 (mm)
- Dimensions:Â 75 x 33 x 75 (mm)
