N321S-24V Differential Temperature Controller, 12 to 30 VDC Powered
Novus (80321S3014) differential temperature controller is designed for solar water heating applications. Two NTC-type temperature sensor inputs and one control output. 12 to 30 VDC Powered.
The N321S is a controller for solar heating applications. It typically commands a water circulation pump through the temperature differential between the solar collector and the thermal reservoir or pools.
The controller has two inputs for NTC-type temperature sensors (supplied with the controller) and one control outlet for activating the water circulation pump.
It also includes function for preventing damage to during deep winter and high summer, thereby preventing plumbing damages (burst pipes) and thermal discomfort.
CE (European Union) and UL (United States and Canada) certifications compliant.
Please note: To increase the sensors' life span, it is recommended that the sensors are either installed inside a thermowell that is carefully designed to avoid water logging due to condensation or have the sensors attached to the exterior of the tank
- Power Supply: 12 to 24 VDC
- Power consumption: 5 VA

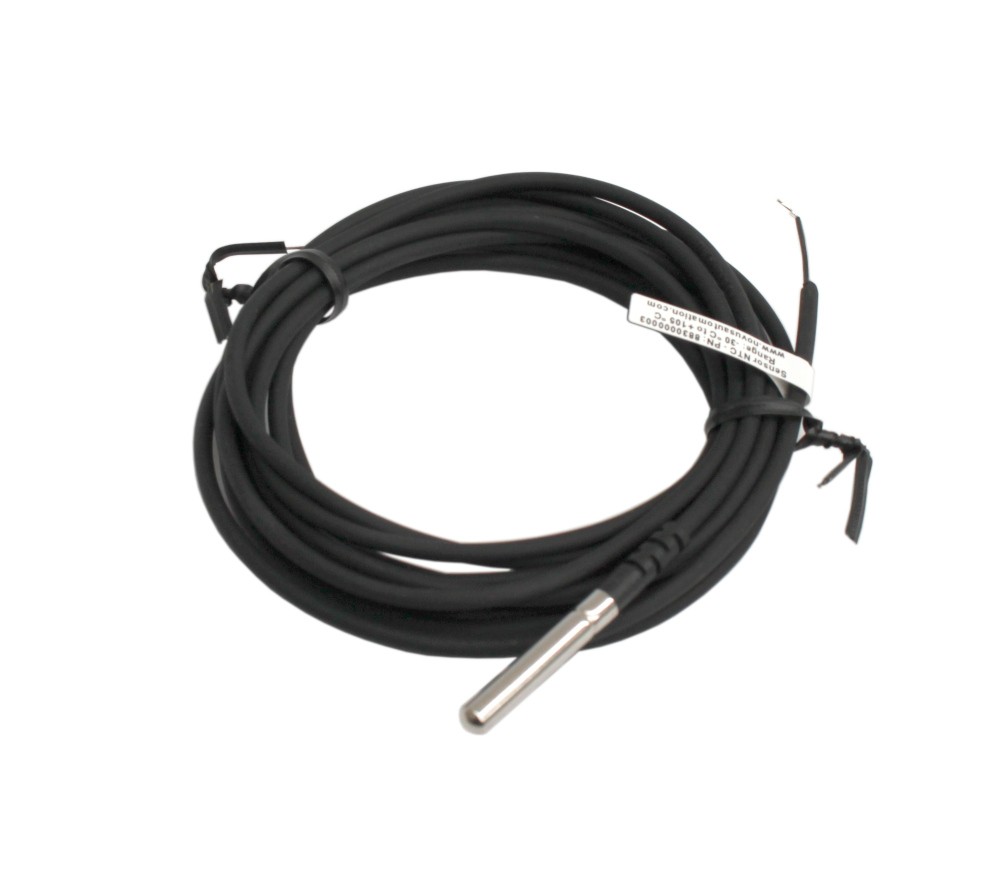

- Input: Two -50 °C to 120 °C NTC sensors (supplied)
- Control output: One SPDT relay outlet, 1 HP(16 A resistive)/ 250 Vac
- Display: 3½ Digit LED Display
- Accuracy: 0.6 °C (NTC)
- Resolution: 0.1 °C from -19.9 to 119.9 °C
- Sampling time: 1.5 time per second
- Operating temperature: 0 to 40 °C
- Storage temperature: -20 to 60 °C
- Protection:
- Front Panel: IP65 rated
- Box: IP42 rated with polycarbonate material, UL94-2
- Weight: 120 g
- Panel cutout: 70 x 29 mm
- Dimension: 75 x 33 x 75 mm
