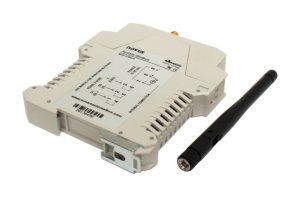

AirGate Modbus (Gateway RS-485/Wireless)
Wireless gateway for extending Modbus networks. USB and RS-485 interfaces.
AirGate-Modbus is a wireless multifunctional gateway that allows the transparent and easy insertion of wireless branches into existing wired RS-485 networks. The AirGate-Modbus has four operation modes, Modbus Master, multiplexer, USB-RS-485 converter and simple wireless RS-485 extension. A proprietary protocol based on IEEE 802.15.4 facilitates operation in Star mode, allowing the connection of several wireless segments to an existing Modbus RS-485 network.
AirGate Modbus is a gateway specially designed to create a network of wireless sensors. It can be used as a extender of Modbus RS485 network and offers flexibility and scalability for the various networks inside facilities.
This product stands out in several aspects. One of them is the long-range wireless communication reaching up to 1000 meters (3200 feet). Operating through own NOVUS-Air wireless network protocol (802.15.4), the AirGate Modbus is independent from the IT customer infrastructure.
The communication has secure data traffic, ensured by 128-bit encryption, and uses available frequency bands of less interference, providing stability and reliability in the communication link.
Easy installation and configuration combined with diagnostics through software make the AirGate-Modbus an outstanding product for field commissioning and the ideal solution for applications requiring flexibility, high performance and connectivity.
Features:
- Network identifier (PAN ID)
- AES-CBC-128 Data cryptography (Advanced Encryption Standard)
- Status indication LEDs
Power supply: 10 to 35 VDC
Power consumption: 70 mA at 24 V
Maximum transmission power: 100 mW
Range: 1000 m (Typically 100 m indoor)
Antenna gain: 2 dBi
Over the air data rate: 250 kbps
Serial baud rate: 1200 bps to 115.2 kbps
RF receive sensitivity: -92 dBm
RF band: ISM 2.4 GHz
Operation modes:
- RS485-Master
- RS485-Slave
- USB-Master
- Multi-Master
Frequency and modulation: DSSS OQPSK
Network topology: Star
Channels: 16
Network identifier: PAN ID
Encryption: AES-CBC-128
USB connection: USB client Mini-B
Antenna connection: Reverse SMA female
Serial connection: 2 connectors for one RS-485 Modbus RTU
Operating temperature: 0 to 70 °C
Operating humidity: ≤80%
EMC:
- EN61000-4-2
- EN61000-4-3
- EN61000-4-4
- EN61000-4-5
- EN61000-4-6
- CISPR11
Ingress protection: IP20
Housing: ABS+PC, DIN rail mount
Weight: 110 g
Dimension: 99.5 × 114 × 17.5 mm
