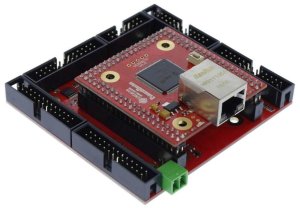

UC300ETH-5LPT Ethernet Motion Controller

UC300ETH-5LPT Ethernet Motion Controller

SKU: CND-004

Directly replaces and expands traditional Parallel Port with Ethernet interface. Can control up to 6 axis simultaneously with Mach3, Mach4 or UCCNC software. It has 49 digital inputs, 36 digital outputs, 2 analog inputs and 2 analog outputs. Can connect directly with a control computer or via routers/switches.

  • Manufacturer: CNCDrive
Buy more for less:
1-4items$160.71/ each
5-9items$144.64/ eachsave10%
10or more items$136.60/ eachsave15%
  • $160.71
In stock(1 item available)

Traditional CNC software such as Mach3 uses the computer's parallel port (also known as printer port or LPT) and sending all signals via this port. Windows is not a realtime operating system and therefor it is a difficult and CPU time consuming task for Mach3 to generate these signals in a precise manner. As the output signals frequency gets higher with using todays more and more advanced motor control electronics, Mach3 takes more processor time of the computer. If the computer gets overloaded by Mach3 or by running other software(s) in the background may leads to a lagging of the G-code code execution to even a falter in the motion interpolation which may lead to a catastrophic failure of some applications.

Another problem with is that Parallel Port is obsolete and none of the new computer have this kind of port built in anymore.

The UC300ETH-5LPT motion controller overcomes these problems by removing all time critical tasks from the control computer and Windows and executing all these tasks inside its own high speed microcontroller. It is a motion controller with ethernet interface. The device can commmunicate with a computer's network card. The connection can be established with direct connection or via a network router/switch.

The UC300ETH-5LPT can be used with stepper motors or servo motors driver with step and direction signals. It can output a maximum of 400kHz stepping frequency and can drive up to 6-axes.

The UC300ETH-5LPT also provide an impressive 49 digital inputs, 36 digital outputs, 2 analog inputs and 2 analog outputs so it can be used in complex machines requiring multiple inputs, outputs signals.

    • SKU
    • Weight
      0.3 kg
  • Control upto 6-axis simultaneously.
  • Works with UCCNC, Mach3 and Mach4 softwares.
  • Up to 400kHz step frequency operation.
  • 49 digital inputs and 36 digital outputs in 5 IDC26 ports.
  • 2 analog inputs and 2 analog outputs.
  • Directly replace Parallel Port interface.
  • Works with direct Ethernet connection to the PC or via routers/switches.
  • Fast communication with data buffer for robust and stable operation.
