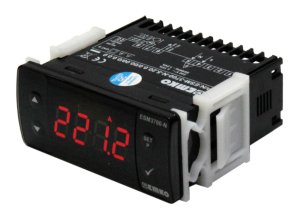

ESM-3700-N Process Indicator 230VAC

ESM-3700-N Process Indicator 230VAC

SKU: EEI-200

ESM-3700 series Programmable Digital Process Indicators are designed for measuring the process value. Selectable Input  0-60mVdc, 0-1V, 0-10V, 4-20mA.

Emko
  • Manufacturer: Emko
Buy more for less:
1-4items$82.22/ each
5-9items$74.00/ eachsave10%
10or more items$69.89/ eachsave15%
  • $82.22
Qty:
In stock(1 item available)

Emko Elektronik's ESM-3700 series Digital Process Indicators are designed for measuring the process value in engineering values. Selectable Input  0-60mVdc, 0-1V, 0-10V, 4-20mA

Features:

  • 4 Digits display
  • Adjustable decimal point
  • 5 Stage analog input filter option
  • Maximum and minimum measurement value are registered to the devices memory
  • Maximum or minimum measurement value can be shown continuously on the display
  • Configurable display scale between -1999 and 9999
  • Selectable universal process Input (0-10Vdc, 0-1Vdc, 0-60mVdc, 0-20mAdc, 4-20mAdc)
  • User can be adjust device’s reading value for selected input type
  • Alarm output, Relay or SSR driver output (Upon request)
  • Adjustable alarm set value from front panel

Manufacturer part: ERM-3770-N.5.20.0.0/00-00/0.0.0.0

Documents:

Download User Manual

Power supply 230 Vac (-15%,+10%) 50/60 Hz. 1,5 VA
    Power consumption 1.5VA
      Outputs Upon Request (1 Relay Output 5A@250VAC Resistive load or SSR.)
Dimensions77 x 35 x 63mm Panel cutout 71 x 29mm
    Weight200 gm
Operating temperature 0°C ÷ +50°C (standard)
    Display LED,  4 x 10 mm red digits
Input Signal 0-10Vdc, 0-1Vdc, 0-60mVdc, 0-20mAdc, 4-20mAdc  Selectable
Display range -1999 and 9999
    • SKU
      EEI-200
    • Weight
      0.5 kg
    • Dimensions (L x W x H)
      10 x 8 x 10 cm
