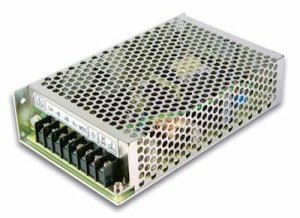

AD-55A Power Supply 13.8V/4A, Battery Charger 13.4V/0.23A
Mean Well model AD-55A 13.8 V, 4 A power supply and and 13.4 V at 230 mA battery charger.
Features short circuit, over load and over voltage protection. Battery low and Battery polarity protection. Approvals include UL/CUL/TUV/CB/CE. Powered from 88-264VAC they are fitted with screw terminals.
- Universal AC input / Full range
- Protections: Short circuit, Overload, Over voltage, Low battery
- Convection cooled
- 100% full load burn in test
- Fixed switching frequency 45 KHz
- 2 year warranty
- Supply Voltage: 88 - 264 VAC
- Output voltage (CH1): 13.8 V
- Output voltage (CH2): 13.4 V
- Adjustable voltage range (CH1): 12-14.5 V
- Rated current (CH1): 3.5 A
- Rated current (CH2): 0.23 A
- Current range: 0-4 A
- Tolerance: ±1%
- Ripple and Noise: ≤100mV
- Efficiency: >71%
- Working Temperature: 0 to 50 °C
- Measurements: 159 × 97 × 38 mm
