0-10Vdc Analog Input with Triple Interlocked Setpoints Din Rail Module
Din Rail Mount Relay Module with single 0-10Vdc Analog Input and Triple Interlocked Relays, adjustable Setpoints, 24VAC/DC power, contact rating 230VAC at 8A

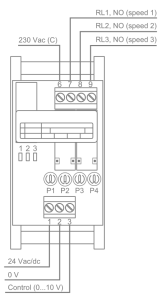

This is a DIN Rail module that converts a singple 0-10 Vdc input signal to three contact outputs. It can control a fan coil (fan speed).
The Relays are interlocked so that only one relay (RL1, RL2 or RL3) can be active at a time. Active relay is indicated by an indicator light (1, 2 or 3) onboard the module.
Model number: FCRY 3
- Power Supply: 24 Vac/dc, 1.5 VA
- Input: 0-10VDC < 0.2mA
- Relay Contacts: 230VAC, 8A (resistive)
- Factory settings:
- RL1 setpoint: 2.5V
- RL2 setpoint: 5.0V
- RL3 setpoint: 7.5V
- Hysteresis: 0.5V
- Set point trimmer ranges:
- P1 (RL1): 0.1 - 1
- P2 (RL2): 0.5 - 1
- P3 (RL3): 4 - 10V
- P4 (Hysteresis): 0.2 - 1V
- Housing: IP20
- Dimensions (WxHxD): 46 x 48 x 89 mm
