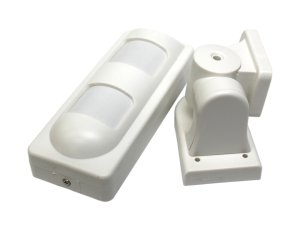

IP65 Wired Dual PIR Motion Detector
Wired outdoor microwave dual PIR motion detector, features built-in microwave sensor and newly-developed dual PIR motion sensors, which doubles the reliability detection technology to eliminate false alarm(s) being triggered.
The PIR-05, a wired outdoor microwave dual PIR detector is designed to provide detection of criminal intrusion into a protected area, by sensing both of the infrared energy (heat) emitted and movement from an intruder’s body. The sensor also provide a tamper contact output and anti-mask to increase its reliability. Upon detection of intrusion, the detector will automatically generates an alarm signal to control panel. The unit is RF and EMI Immunity to eliminate interference produced by radio device. The unit can be wall-mounted by means of a bracket.
- Built-in microwave sensor and newly-developed dual element passive infrared sensor unit, double reliable detection technology to eliminate the false alarm
- Wired transmitting digital signal to control panel
- Intelligent logic control eliminates false alarms
- Microcontroller temperature analysis and Automatic temperature compensation for best summertime detection
- Tightly-mated bug guard to protect the sensor optics from insects, spiders and dust;
- High immunity to white light
- Selectable detection sensitivity (standard/high) for different environmental requirements;
- SMT adopted, RF and EMI Immunity
- Adjustable detecting distance
- Alarm output contacts of relay: N.C
- Operating Voltage: 9 to 12 VDC
- Vertical angle: Vertical angle 60°
- Horizontal angle: 110°
- Range: 12 m at 20°C.
- Standby Current: less than 25 mA
- Alarm Current: less than 100 mA
- RF Immunity: > 30 V/m @ 0.1 to 500 MHz
- Sensitivity: > 3300 V/W
- Noise (Vp-p): ≤ 200 mV (mVp-p) (25°C)
- Anti white light: > 10000 Lux
- Microwave Frequency:10.525 GHz
- Output Type: NC
- Pet Immunity: ≤ 35 Kg
- Temperature Range: -20°C to +40°C
- Relative Humidity: 95% (25 ℃)
- Installation Mode:Wall mounted by bracket
- Installation Height:1.8 to 2.4 m
- Detection Speed:0.3 m/S to ~3.2 m/S
- Housing:High-impact ABS
- Dimensions: 160 × 65 × 50.5 mm
