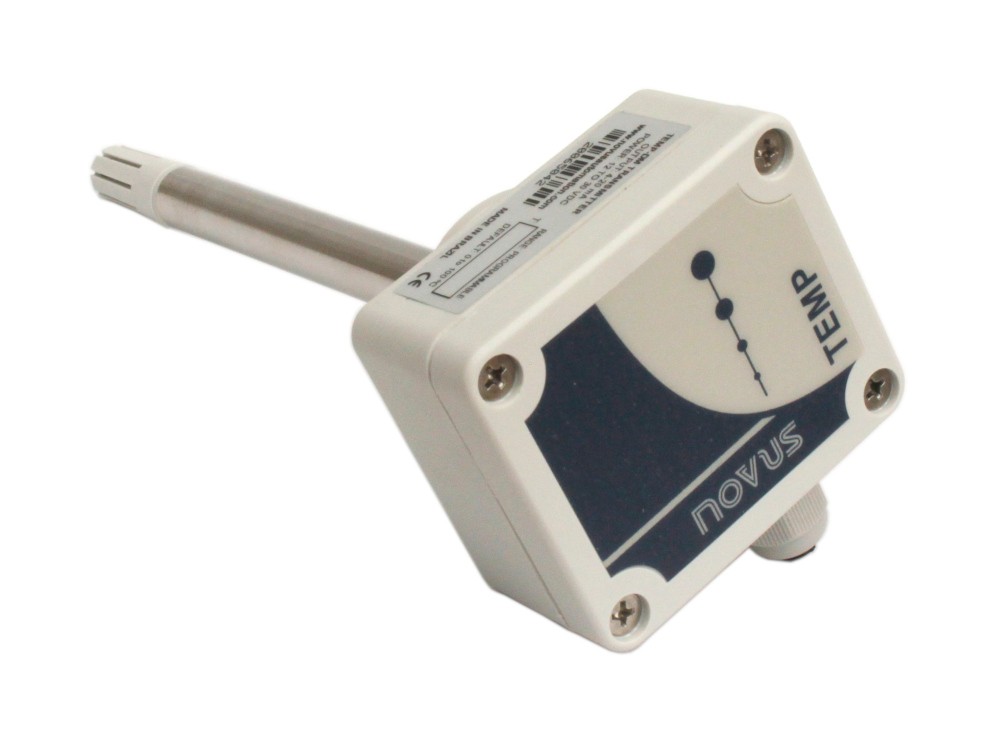

Temp-DM Duct Temperature Sensors 4-20mA 150mm

Temp-DM Duct Temperature Sensors 4-20mA 150mm

SKU: RHT-022

Temp-DM Duct Temperature Sensors 4-20 mA 150 mm


  • Manufacturer: Novus
    • % off
    $125.27 save $31.32
  • $93.96
In stock(1 item available)

The TEMP-WM and TEMP-DM transmitter series incorporate the best high accuracy and great stability temperature sensors. They convert the measured values into linear 4 to 20 mA signals and optional 0 to 10 Vdc output can also be offered under request.

The microprocessor based circuit enables full configuration of output range when used with the TxConfig PC interface and the Windows® based software.

The TEMP-WM model is dedicated to wall mounted applications and the TEMP-DM version is suitable for duct and through-the-wall applications.


Note: When measuring temperatures higher than +65 °C or lower than -20 °C, only 50% of the probe total length must be inserted into the measured environment.

  • Internal protection against reversed voltage wire polarity.
  • No electrical isolation between input, output and power circuits.

Note: Temp-DM Duct Mount can be purchased with 150 mm and 250 mm probes

Taking Care with Sensors

The TEMP-WM is designed primarily for commercial offices and building where air is relatively clean and condensation does not occur. The calibration of the humidity sensor may be changed if it is exposed to contaminant vapors or extreme humidity and temperature conditions for long time periods. If using in a dusty environment a Sintered Bronze Dust Cover (SKU RHT-030)is recommended

    • SKU
    • Weight
      0.3 kg
    • Dimensions (L x W x H)
      22 x 8 x 7 cm

Power supply: 12 to 30 VDC

Output: 4-20 mA or 20-4 mA current, 2-wire loop power supply

Output resolution: 0.006 mA

Accuracy: 0.5 ºC at 25 ºC (1.6 °C for the entire measurement range)

Range: Configurable between -50 and 120 °C (Default - 0 to 100 °C)

Response time: Up to 30 seconds in slow moving air

Reverse polarity protection: Yes

Cable entrance: Compress fitting PG7

Operating limits:

  • Electronic circuits: -20 to 65 °C
  • Sensor and probe: -40 to 100 °C

Dimensions: 70 x 80 x 35 mm
