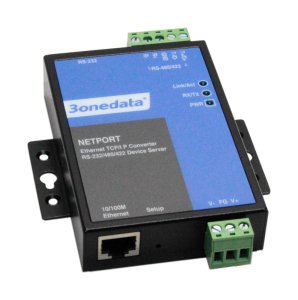

NP301 RS-232/RS-422/RS-485 10/100 Mb Ethernet Serial Server
Connects an RS-232, RS-422 or RS-485 serial signal to an ethernet network. 10/100 Mbps ethernet supported. DE-9 and screw terminals for serial port. 9 to 48 VDC powered.
NP301 from 3OneData is the serial device server that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. The product supports 1 RS-232/RS-422 /RS-485 to 1 10/100M Ethernet port. It adopts wall mounting to meet the requirements of different application scenes.
Serial device server supports multiple network protocols, such as TCP, UDP, ARP, ICMP, HTTP, DNS and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports TCP Server, TCP Client, TCP Auto, UDP, Advanced TCP Server, Advanced UDP operating modes and AT, WEB access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
Features:
- Adopt 32 bits ARM processor
- Support 10/100Base-T(X) self-adaptive Ethernet interface
- Support AUTO MDI/MDIX, which can be connected via crossover cable and straight-through cable
- Support 300bps-115200bps line speed and non-blocking communication
- Support low power consumption mode and high performance mode
- Support TCP Server, TCP Client, TCP Auto, UDP, Advanced TCP Server and Advanced UDP operating mode
- Support AT command, which is convenient for the secondary development of users
- Support DNS, which can achieve communication via domain name
- Support across gateway and routing communication
- Support virtual serial port drive access mode and automatic connection recovery after network interruption
- Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation
- Support standard TCP/IP SOCKET application access
- TCP supports multi-connection, which allows maximum 4 users to monitor or manage the serial device simultaneously
- UDP supports single machine or multi-machine communication, which allows multiple users to monitor or manage the serial device simultaneously
- Support Windows configuration tool, serial port, WEB and other configuration forms
- Support local and remote system firmware upgrading
Input Voltage: 9 to 48 VDC, 0.8W
RS-232 Signals: TX, RX, RTS, CTS, DTR, DSR, GND
RS-422/RS-485 Signals: TXD+/D+, TXD-/D-, RXD+, RXD-, GND
Baudrate: 1200 to 115200 bps
Data format: Data format:
Protection: Power supply: ±2kV, Ethernet interface: ±1kV, Serial port: ±1kV
Connector (Ethernet): RJ45
Connector (RS-232): DE-9 Male
Connector (RS-422/RS-485): Screw Terminals
Operating temperature: -10 to 65 °C
Dimensions (W x H x D): 69mm×22mm×100mm
