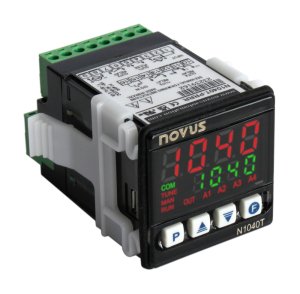

N1040T-PRRR USB Timer/Temperature controller 230VAC powered

N1040T-PRRR USB Timer/Temperature controller 230VAC powered

SKU: NOC-310

Economic and efficient temperature and time controller, with PID, USB interface, two timers and many other features. 230VAC powered

  • Manufacturer: Novus
Buy more for less:
1-4items$94.31/ each
5-9items$84.88/ eachsave10%
10or more items$80.16/ eachsave15%
  • $94.30
In stock(3 items available)

N1040-T is an economic and efficient Time and Temperature controller, developed with modern technology and automatic tuning of PID parameters, ON-OFF control and totally configurable. It has a reduced depth flameproof plastic enclosure.

It has two independent timers with several operation modes that allow timer association to the controller output or to the temperature control.

It accepts Pt100 sensors, NTC and thermocouples types J/K/T with decimals on all sensors. It has a fast electrical connection coupler system that reduces installation time.

Single model with 4 configurable outputs for process control, alarm or timing. Configuration protection by password and factory calibration recovery.


  • Auto tuning PID
  • The outputs are programmable for main control or alarm
  • Alarm functions: low, high, differential, low differential, high differential, sensor break
  • Two alarm functions can be directed to one single output
  • Safe output function allows the user to set control output conditions in case of sensor break or failure
  • Digital input
  • Simplified programming menu makes operator programming easily
  • Indelible electronic serial number with 8 digits can be accessed from the display
  • Count up and countdown timer
  • Adjustable break timing until 99:59 (mm:ss)
  • Timer enabling through digital input, Set Point, keypad or by enabling the temperature control
  • Timer output can be switched when the time finishes
  • Silicone rubber keypad
  • CE and UL certification

Power supply: 100 to 240 VAC ±10%, 50/60 Hz

Maximum consumption: 6 VA

Accepts inputs:

  • Thermocouples J,K,T
  • Pt100 RTD


  • Out 1: Voltage pulse, 5 V / 25 mA
  • Out 2 and Out 3: Relay SPST, 1.5 A / 240 Vac / 30 Vdc
  • Out 4: Relay SPDT, 3 A / 240 Vac / 30 Vdc

Internal resolution: 15 bits

Display resolution: 0.1 / 1 (°C/°F)

Sampling rate: Up 5 per second

Thermocouple precision: 0.25% of the span ±1°C

Pt100 and NTC precision: 0.2% of the span ±0.1°C

Operating temperature: 0 to 50 °C

Operating humidity: 80% at 30°C


  • Front panel: IP65
  • Enclosure: IP30

Weight: 75 g

Dimension: 48 x 48 x 80 mm

    • SKU
    • Weight
      0.2 kg
    • Dimensions (L x W x H)
      8 x 7 x 6 cm
