Site-Log 4-20mA / 0-50mA Current Data logger

Site-Log 4-20mA / 0-50mA Current Data logger


Site-Log Current Datalogger, programmable input selections for each channel:
4 ~ 20 mA, 0 ~ 50 mA.

Micro Edge
  • Manufacturer: Micro Edge
Buy more for less:
1-4items$503.92/ each
5-9items$453.53/ eachsave10%
10or more items$428.33/ eachsave15%
  • $503.91
In stock(2 items available)

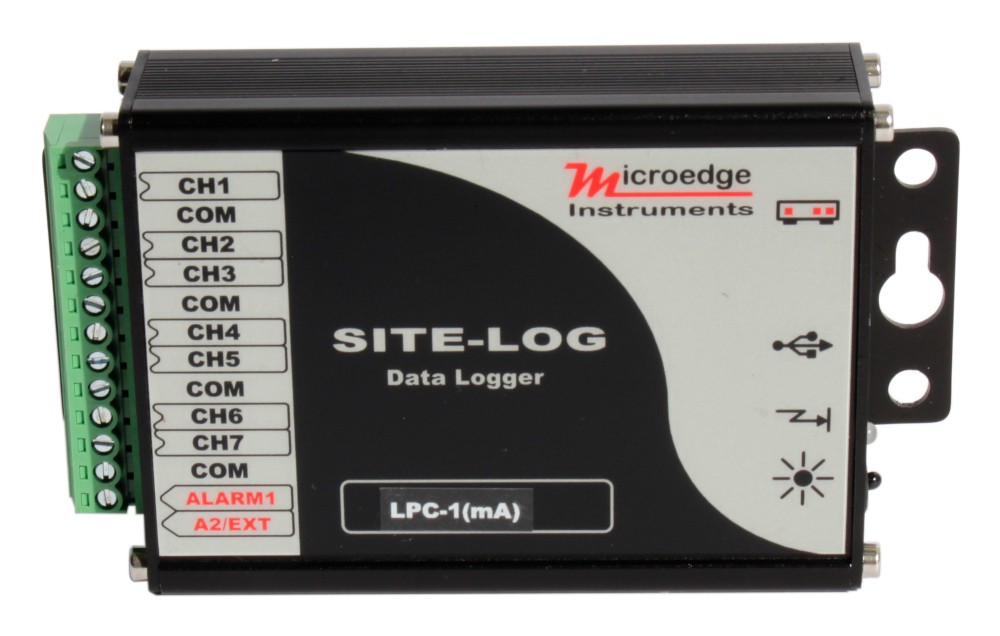

SITE-LOG LPC-1 is a 7-channel current plus 1-channel temperature, battery-powered, stand-alone data logger, with 8 MB of data storage in non-volatile flash memory. Input current signals can be from sensors, transducers, transmitters, or other common current sources.
Its on-board temperature channel provides environment monitoring and temperature compensation.
Its aluminum enclosure makes it excellent in the harshest industrial environment.
Plug & Play USB port and versatile custom equation simplify communications and engineering unit conversion. 16-bit ADC makes it well suited for science and laboratory applications where precise and accurate measurements are critical.
Plug the logger into the computer's USB port, and the software automatically recognizes it and handles the configuration, downloading graph viewing, and more...

Logger Memory Capacity

Sampling IntervalEnabled ChannelLogging Capacity
1 minute18 years
1 minute24 years
1 minute81 year
10 seconds1485 days
10 seconds2242 days
10 seconds860 days
1 second148 days
1 second224 days
1 second86 days
100 milliseconds14 days
100 milliseconds22 days
100 milliseconds814.4 hours

  • Programmable Inputs: 7 x  4-20 mA or 0-50mA
  • Operating temperature: -40°C ~ 70°C
  • Accuracy
    • Thermistor: ±0.2°C(0°C ~ 70°C, 32°F ~ 158°F)
    • 4 ~20mA channel: ±0.15 %FSR @ 25°C
    • 50mA channel: ±0.15% FSR @ 25°C for 2.5mA ~ 50mA
    • ±0.5% FSR @ 25°C for 0 ~ 2.5mA
  • ADC: 16-bit
  • Memory: 8 Megabytes (4MB readings).
  • Overcurrent Protection: up to +/- 100 mA
  • Baud rate: Both USB and serial interfaces with auto baud rate of up to 115200 bps
  • Power: Built-in 3.6 V Lithium Battery.
  • Battery life:  10 years based on 1 minute sampling interval in stand-alone mode.
  • Channel Alarms: Two editable alarm thresholds per channel
  • Sample rate: 20 milliseconds to 12 hours
  • Excitation Control: power control to external devices - only powers sensors to take a reading
  • Dimension: 88 X 64.2 X 24 mm
    • SKU
    • Weight
      0.28 kg
    • Dimensions (L x W x H)
      17 x 12 x 5 cm
