SCA132B-P095 Dual Axis ±10° Tilt Switch

SCA132B-P095 Dual Axis ±10° Tilt Switch

SKU: SRS-044

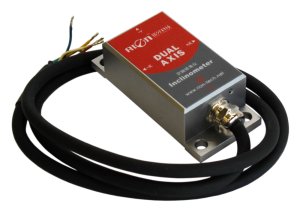

SCA132B-P095 is a digital type dual axis serial inclinometer measures up to ±9.5 º. 2 × normally closed PNP outputs with configurable trip points activate when the sensor is tilted.

RION
  • Manufacturer: RION
Buy more for less:
1-4items$201.83/ each
5-9items$181.65/ eachsave10%
10or more items$171.56/ eachsave15%
  • $201.83
Qty:
Available for backorder

The SCA132 dual axes tilt switch uses the latest MEMS technology to sense the angle of the device. The sensor mounts flat and provides two orthogonal outputs for X and Y tilt from -9.5º to +9.5º.

The switch action points and trigger delay time can be output and set through the RS-232 serial communication port. It has ZERO setting function and response frequency adjustment function is as well as configurable baudrate.

Features:

  • Dual axis with 4 directions tilt serial inclinometer
  • RS-232 output
  • 9 to 36 V DC supply
  • -10 to 10 º range
  • 2 × normally closed PNP outputs with configurable trip points
  • Full metal jacket, IP67 protection
  • Wide operating temperature -40 to 85 °C
  • Comes with 1 m lead cable
  • Small size: 91 × 40 × 26 mm

Applications:

  • Rail-mobile monitoring
  • Radar detection of vehicle platform
  • Satellite communications vehicle posture detection
  • Shield pipe jacking application
  • Oil-well drilling equipment
  • Gun Barrel angle measurement in early shooting

Wire Colour Correspondence Table:

Documents:

The SCA132 dual axes tilt switch uses the latest MEMS technology to sense the angle of the device. The sensor mounts flat and provides two orthogonal outputs for X and Y tilt from -9.5º to +9.5º.

The switch action points and trigger delay time can be output and set through the RS-232 serial communication port. It has ZERO setting function and response frequency adjustment function is as well as configurable baudrate.

Features:

  • Dual axis with 4 directions tilt serial inclinometer
  • RS-232 output
  • 9 to 36 V DC supply
  • -10 to 10 º range
  • 2 × normally closed PNP outputs with configurable trip points
  • Full metal jacket, IP67 protection
  • Wide operating temperature -40 to 85 °C
  • Comes with 1 m lead cable
  • Small size: 91 × 40 × 26 mm

Applications:

  • Rail-mobile monitoring
  • Radar detection of vehicle platform
  • Satellite communications vehicle posture detection
  • Shield pipe jacking application
  • Oil-well drilling equipment
  • Gun Barrel angle measurement in early shooting

Wire Colour Correspondence Table:

Documents:

    • SKU
      SRS-044
    • Weight
      0.27 kg
    • Dimensions (L x W x H)
      16 x 11 x 4 cm

Specifications:

Wire Colour Connection
Red9 to 36 VDC (Positive of Power Supply)
BlackGND (Negative of Power Supply) & Set Zero A
GreenSet Zero B
YellowXY Alarm Output
OrangeRXD
WhiteTXD
