Draw Wire Incremental Encoder 1m

Draw Wire Incremental Encoder 1m

SKU: DBS-315

Draw Wire Incremental Encoder with 1m wire length, 0.1m resolution, ABZ Phase Open Collector Output, 8-26VDC Powered.

DCBox
  • Manufacturer: DCBox
Buy more for less:
1-4items$535.17/ each
5-9items$481.66/ eachsave10%
10or more items$454.90/ eachsave15%
  • $535.17
Qty:
In stock(1 item available)

This wire type encoder is designed for measuring lengths and distances of linear and near-linear movements. It uses a flexible nylon-jacked steel cable, spring-loaded spool and high precision optical encoder to give a measurement of cable extension in harsh environments.

The sensor provides a quadrature ABZ NPN open collector type output pulses with a resolution of 0.1 pulse per mm.

Draw wire sensors are also known in the industry as cable transducers, cable-extension transducers, string potentiometers, draw wire transducers, yo yo pots, linear position string pots, and string encoders.

Model: HLS-S-10-0.1-Z-C

Power Supply: 8-26 VDC,

Output Wave: Square wave

Output Phase: ABZ

Output Capacity: 20mA

Operating Temperature: 0-60°C

Operating Humidity: 20-90%RH non-condensing

Storage Temperature: -10-70°C

Storage Humidity: 20-90%RH non-condensing

Waveform Rise/Fall: 2µs

Max Frequency: 10kHz - 100kHz

Wire material: 1mm SUS304 with Nylon coated

Starting torque: 1500-2000g

Max speed: 1000 m/s

    • SKU
      DBS-315
    • Weight
      1.5 kg

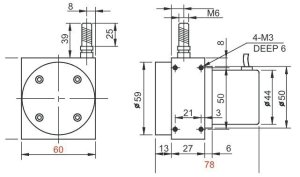

    • Dimensions (L x W x H)
      25 x 20 x 20 cm
