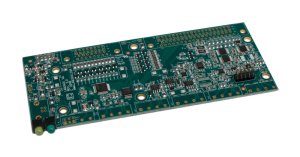

LabJack U6 Data Acquisition OEM Card
LabJack U6 Data Acquisition OEM Card.
The -OEM variant does not include the screw terminals or enclosure. It is designed for direct integration into a larger product or platform. It ships with the board only. All documentation, drivers, and examples are available online. DAQFactory Express is not included.
Features:
- Expandable to 80 single ended or 40 differential with the Mux80 Card >>
- Instrumentation Amplifier Inputs - software Programmable Gains of x1, x10, and x100
- Built-In CJC Temperature Sensor for themocouples
- Supports SPI, I2C, and Asynchronous Serial Protocols (Master Only)
- Supports Software or Hardware Timed Acquisition
- USB 2.0/1.1 Full Speed Interface
- Drivers Available for Windows, Linux, Mac and Pocket PC
- Examples Available for C/C++, VB, LabVIEW, Python, and More
- DAQFactory Express Software
For more information:
The User's Guide on U6 Support Page has all the specifics for working with the U6. You'll also find the quick start guides, software drivers and any other literature we've published on the U6.
Power supply: Through USB cable
Analogue Inputs: 14 (16-18+ Bits Depending on Speed)
Analogue Input: Ranges of ±10, ±1, and ±0.1 Volts
Digital I/O: 20
Inputs: Single-Ended Inputs (14) or Differential Inputs (7)
Analogue Outputs: 2 (12-Bit, 0-5 Volts)
Fixed Current Outputs: 2 (200/10 uA)
Sampling rate: 50 kHz (Depending on resolution)
Response time: Less than 1 Millisecond
Counters: Up to 2 (32 Bits Each)
Timers: Up to 4 (Pulse Timing, PWM Output, Quadrature Input, ...)
Communication interface: Ethernet RJ45
Operating temperature: Industrial Range -40 to +85 °C
