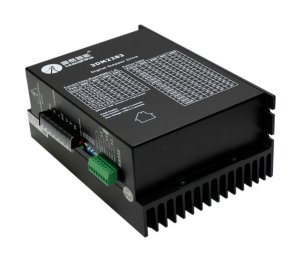

3DM2283 3-Phase Digital Stepper Drive 150-230 VAC
The 3DM2283 stepper drive adopts advanced features like electrical damping, anti-resonance, start-up smoothing, multi-stepping. With the input voltage of 90 - 230 VAC / 115 - 325 VDC and output current of 2.10 - 11.7 A, it is capable of driving a wide range of 3-phase stepper motors with high precision at extra smoothness, quietness, and very low motor heating.
By implementing the latest DSP current control technology, Leadshine 3DM2283 is a high performance 3-phase digital stepper drive. It takes step & direction or CW/CCW control commands, and is very simple to implement in OEM applications.
The 3DM2283 stepper drive adopts advanced features like electrical damping, anti-resonance, start-up smoothing, multi-stepping... With the input voltage of 90 - 230 VAC / 115 - 325 VDC and output current of 2.10 - 11.7 A, it is capable of driving a wide range of 3-phase stepper motors with high precision at extra smoothness, quietness, and very low motor heating.
Its multi-Stepping feature allows a low resolution step input to produce a much higher microstep output for smoother & quiet motor movement, and much lower motor heating. This feature will significantly improve the performance of your stepper control systems.
The 3DM2283 stepper drive is easy to setup and configure via DIP switches. There are 16 resolution settings from 200 - 25600, and 7 output current settings from 2.10 - 11.7A. Also, a user can simply set the idle current to full (100%) or 50% of the output current via a DIP switch.
Its motor auto identification and drive self-configuration feature allows quick and easy setup for various motors at optimal performance.
For advanced users, Leadshine offers tuning software for performance fine-tuning. A user can tune a stepper motor's three resonance areas (usually around 0.5 rps, 1 rps, and 2 rps) to reduce noise and vibration, set microstep resolution to any value from 200 to 104,000 (increase by 200), and configure output current to any value of 2.1 - 11.7A (increased by 0.1A); and idle current of 1-100% of output current.
Features:
- Anti Resonance for optimal torque, smooth motion, low motor heating and noise
- Motor auto identification and parameter auto configuration for optimal torque from wide range motors
- Step & direction (PUL/DIR) and CW/CCW (via internal jumper set) control. Step & direction by default
- Microstep resolutions from full-step to 25,600
- 200 KHz max pulse input frequency
- Optically isolated inputs
- Input voltage 150-230VAC
- Soft start with no “jump” when powered on
- Output current programmable, from 0.5A to 11.7A. It can also be set via DIP switches.
- Automatic idle current reduction
- Protections for over voltage and over current
Applications:
The drive is suitable for a wide range of stepping motors, from NEMA frame size 23 to 51. It can be used in various kinds of machines including CNC machines, laser cutters, laser markers, high precision X-Y tables and labeling machines. Its unique features make the 3DM2283 an ideal solution for applications that require both low-speed smoothness and high speed performance.
Operating voltage: 150-230 VAC
Output current (DIP Switch): 3.1A to 11.7A (Peak)
# of DIP Switch Current Configurations: 8
# of DIP Switch Speed Configurations: 16
DIP Switch Micro Step Configurations: 200 ~ 25.600
Communication Type: RS232 for tuning
Environment: Avoid dust, oil fog and corrosive gases
Operating Temperature: 0 - 50 °C
Storage Temperature: -20 - 65°C
Mechanical: 200 * 137 * 81 mm
