SPCO Wafer Style 6mm Wide Relay Module 9VDC

SPCO Wafer Style 6mm Wide Relay Module 9VDC

SKU: NTR-0400

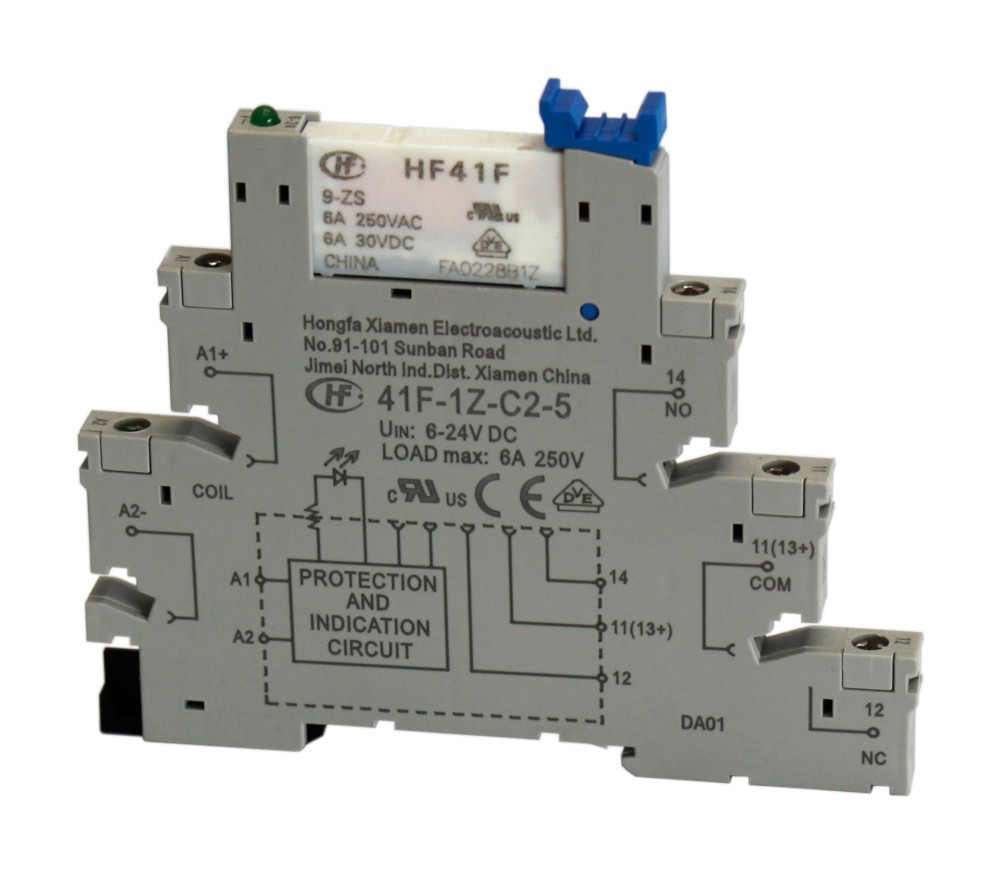

6mm wide complete package of socket and relay combined, the base features an integral LED indicator and a relay retaining clip. SPCO contact rated 6 Amps / 250VAC AC1

Foxtam Controls
  • Manufacturer: Foxtam Controls
Buy more for less:
1-4items$14.45/ each
5-9items$13.00/ eachsave10%
10or more items$12.28/ eachsave15%
  • $14.45
In stock(10 items available)

A genuine SPCO mechanical relay package the width of a terminal at only 6 mm wide is the ultimate solution when space is limited and a high packing density is required, in fact in certain applications use the product as a combined terminal and relay saving on even more space. The product is supplied as a complete package of socket and relay combined, the base features an integral LED indicator and a relay retaining clip that also acts as the relay ejector if the need to remove the relay arises. Whilst being the ultimate in space saving the relay has a switching capability of 6 Amps / 250 VAC AC1 and also benefits from a low coil consumption.

A dedicated 9 VDC relay module is available for use in the BMS sector where 0-10 VDC signals are used and a digital output is required. With a pull in voltage of 7.5 VDC and a release voltage of 4 VDC, along with a low power consumption of circa 160 mW (including the LED), this makes these modules an attractive alternative as a “BMS SRMV” relay.

The socket element is more than a socket, it is an electronic device dropping a voltage over a range and also providing a LED indicator. The socket is an equal component in the assembly as the relay. For example, a 240 VAC supply does not utilise a 240 VAC coil relay, a 60 VDC relay is used. This is why this product is only sold as a complete made up assembly.

An optional 20 way jumper bar comb is available to common up negatives or 0 V’s, also available as an accessory is a strip of 16 marker tags.

Also of note, is that 12 V, 24 V and 48 V coils can be either AC or DC, same relay.

  • Coil: 9VDC 18mA
  • Contact type: SPCO
  • Contact rating: 6 Amps / 250VAC AC1
  • Contact material: AgNi
  • Operate time: 8mSec max
  • Release time: 4mSec max
  • Electrical life: 30000 ops (at full load)
  • Mechanical life: 10 000000 ops
  • Insulation resistance: 1000 MOhms
  • Insulation: Coil to contacts: 4KVAC 1 min, Open contacts: 1KVAC 1 min
  • Ambient temperature: -40°C to +55°C
  • CE marked: Yes
  • VDE approved & marked: Yes
  • UL approved & marked: Yes
