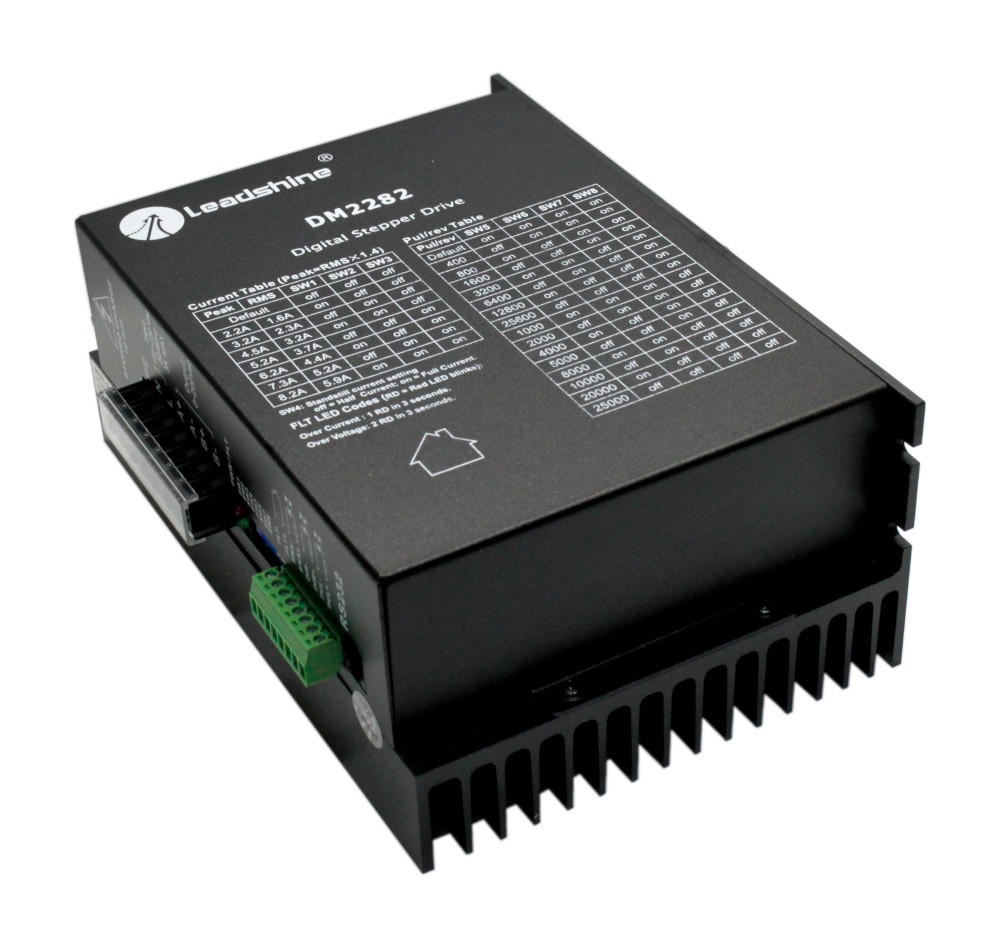

DM2282 8.2A High Voltage Open Loop Stepper Drive
The DM2282 is a high voltage. versatile stepper driver with advanced control algorithm. It is able to power 2 phase and 4 phase stepper motors from NEMA 34 to NEMA 51. It can provide up to 8.2A, operating at 240VAC.
The DM2282 is a high voltage, versatility fully digital stepping driver based on a DSP with advanced control algorithm. It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability. Motor self-test and parameter auto-configuration technology offers optimum responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drivers on the markets. Its unique features make the DM2282 an ideal solution for applications that require low-speed smoothness.
Features:
- Anti-Resonance provides optimal torque and nulls mid-range instability
- Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors
- Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus
offers smoother motor movement - Microstep resolutions programmable, from full-step to 51,200. It can also be set via DIP
switches. - Soft-start with no “jump” when powered on
- Supply voltage up to 230 VAC
- Output current programmable, from 0.5A to 8.2A. It can also be set via DIP switches.
- Pulse input frequency up to 200 KHz
- 5V optically isolated input
- Automatic idle-current reduction (Reduction rate can be software configured)
- Suitable for 2-phase and 4-phase motors
- Support PUL/DIR and CW/CCW modes
- Over-voltage, over-current, phase-error protections
Input voltage: 180-240VAC
Output current: 2.2 to 8.2 A
Pulse input frequency: 200kHz
Logic voltage: 5VDC
Micro-step: 1 to 512
Operating environment:
- Environment: Avoid dust, oil fog and corrosive gases
- Storage temperature: -20 to 65°C
- Ambient temperature: 0 to 50°C
- Humidity: 40% to 90% RH
- Operating temperature: 70°C Max
- Vibration: 10 to 55Hz, 0.15mm/s
