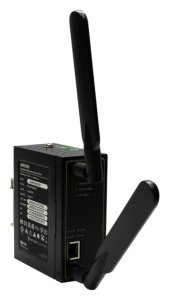

AW5500 Wireless Access Point

In stock (1 item available)
  • Weight
    0.5 kg
  • SKU
    ATO-201

AW5500 is an industrial, extremely flexible and cost-effective wireless device that supports access point (AP), Bridge, Wireless Distribution System (WDS) and Client modes of operation. It also supports IEEE 802.11 a/b/g/n using either the 2.4GHz or 5GHz frequency bands - for maximum compatibility with other Wi-Fi devices and lightning fast data-rates. 9 to 48 VDC powered, 5.85 W power consumption.

Buy more for less:
1-4 items AUD579.00 / each
5-9 items AUD521.10 / each save 10%
10 or more items AUD492.15 / each save 15%
  • AUD579.00
Qty:

AW5500 embodies a strong wireless network manager that will deliver optimum performance in your network. It comes with dual antenna design which offers better wireless coversafe and reduces wireless blind spots

This unit can be set up as Acess Point (AP), Bridge, Wireless distribution System (WDS) and Client modes of operation. The AW5500 has been designed for industrial applications with conformal coating PCB protection, robust metal enclosure (IP50 rated) with DIN-rail or Wall mount option.

In industrial and manufacturing automation fields, AW5500 is used as a field device to connect the Ethernet through TCP/IPv4 protocol directly. It is also specially designed for conjunction with PLCs, HMIs, Barcode Scanners, Data Terminals, Electronic Kanbans, Shop Floor Control Systems, and Pick-to-Light Systems. This unit has a 5 year warranty

We carry a selection of the full range of options listed in the datasheet. Non-stocked configurations may be available but may be subject to minimum order quantities or different pricing. Contact Us for more information

WLAN

  • Tx power: 17 dBm max
  • Transmission rate: 300 Mbps
  • Rx sensitivity: -98 dBm max
  • Encryption: TKIP, AES
  • Security: Security WEP, WPA-PSK, WPA2-PSK, 802.1x
  • Topology: Infrastructure, Ad-Hoc
  • Antenna connector: Reverse SMA
  • Standard antenna: 3/5 dBi
  • Compliance: IEEE802.11gb

Ethernet

  • Transmission rate: 10/100/1000 Mbps Auto-detection
  • Port: 1
  • Connector: RJ-45
  • Auto MDI/MDI-X: Yes
  • Compliance:
    • IEEE802.3 10BASE-T
    • IEEE 802.3u 100BASE-TX
    • IEEE 802.3ab 1000BASE-T

Link Mode

  • TCP Server: 4 Connections, Virtual COM, Reverse Telnet
  • TCP Client: 2 Destinations or Virtual COM
  • UDP: 4 Ranges of IPs

Software

  • Operation Modes: AP, WDS Bridge, AP Client
  • Wireless Security: WEP, WPA, WPA2, TKIP, AES, 802.1x
  • Network Security: Client Isolation, Firewall / Filtering, Turn off Radio
  • Alerts Event: E-mail / SNMP Trap
  • Supported Protocols: ICMP, TCP, UDP, DHCP Server/Client, DNS, SNMP, NTP, SMTP, HTTP, IPv4, 802.1x, RADIUS, STP/RSTP

Regulatory Requirements

  • EMC:
    • EN 301489-1/17 (Class A)
    • FCC 15 Subpart B (Class A)
    • CNS 13438
  • EMS:
    • EN55024
    • EN55022
  • Radios:
    • FCC 15 Subpart C
    • FCC 15 Subpart E
    • EN 301893
    • EN 300328
    • NCC LP00002
  • RoHS: Yes
  • Protection:
    • Shock: IEC 60068-2-27
    • Freefall: IEC 60068-2-32
    • Vibration: IEC 60068-2-6

Mechanicals

  • Housing: IP50 rated
  • Installation: DIN-rail
  • Reset Button: Yes
  • Dimensions: 47(W) x 110(H) x 90(D) mm

Connection Diagrams


Figure1.1: Access Point Client



Figure1.2: AW5500 Acts As A Bridge



Figure1.3: Wireless Distribution System
